Pneumatic - Air Winches

Model WA-45 Tugger

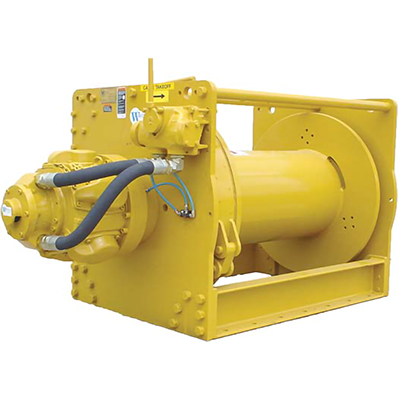

Pneumatic - Air Winches WA-45
Drawing of WA-45 Pneumatic Winch
How to Size a Winch or Hoists
Information Required to Quote Pneumatic Winch or Hoist
4,500 lbs. - 2.5 ton line pull @ full drum
7,500 lbs. - 3.75 ton line pull on @ first layer
55 feet per minute
(Based on 340 CFM at 100 PSI)
Manufactured in the United States

Standard Features:

• Automatic Disc-Type Holding Brake

• Manual Band-Type Holding Brake

• Cable-Friendly Drum to Cable Diameter Ratio (18:1)

• Integral Directional Control Valve design for Harsh Environments

• Designed for Reliable Day to Day Operation

• Heavy-Duty Steel Fabricated Drum and Frame Components

• White Blasted and Coated with Blue Marine Duty Paint


Other Options Available:

• Automatic Band Brakes

• Grooved, Divided and Extended Length Drums

• Air Preparation Packages: filter, lubricator, strainer, and regulator

• Drum Guards

• Remote Pendant Control

• Muffler

• Special Paint Options: Special Colors, Zinc Rich Primer, Epoxy Top Coats

Drum Capacities - 24 Inch Drum - Longer Drums Available
1/2" wire 5/8" Wire
1010 feet 520 feet
