Electric Winches and Hoists

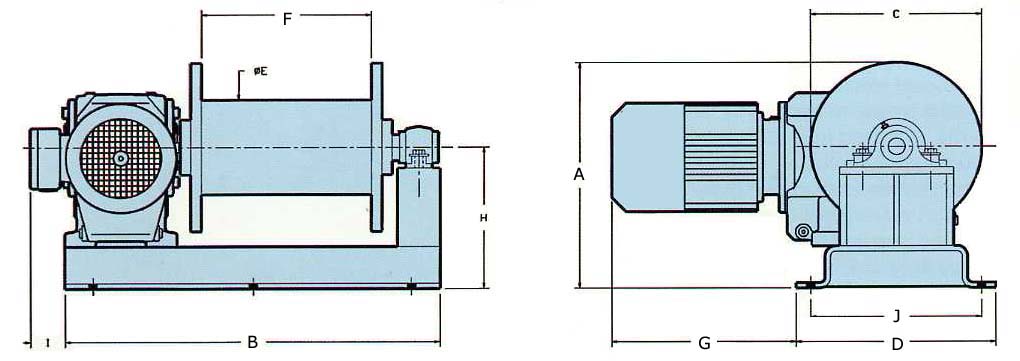

RK Series Drawing

RK Series Winch Drawing

Dimensions (inches)
Model A B C D E F H I J Weight (lbs.)
RK500-20 10 1/2 19 3/4 8 11 3/4 4 1/2 8 6 1/2 2 1/2 10 1/4 130
RK500-50 10 1/2 19 3/4 8 11 3/4 4 1/2 8 6 1/2 2 1/2 10 1/4 137
RK800-20 10 1/2 19 3/4 8 11 3/4 4 1/2 8 6 1/2 2 1/2 10 1/4 137
RK800-80 10 1/2 19 3/4 8 11 3/4 4 1/2 8 6 1/2 3 3/4 10 1/4 149
RK1000-20 11 1/2 20 3/4 8 11 3/4 4 1/2 8 7 1/2 2 1/8 10 1/4 150
RK1000-50 11 1/2 20 3/4 8 11 3/4 4 1/2 8 7 1/2 3 1/2 10 1/4 164
RK1000-150 11 1/2 20 3/4 8 11 3/4 4 1/2 8 7 1/2 3 3/4 10 1/4 181
RK1500-30 15 1/8 24 3/4 12 16 1/2 6 7/8 12 9 1/8 2 3/4 14 3/4 234
RK1500-60 15 1/8 24 3/4 12 16 1/2 6 7/8 12 9 1/8 2 7/8 14 3/4 250
RK2000-20 16 3/8 26 1/4 12 16 1/2 6 7/8 12 10 3/8 2 1/8 14 3/4 303
RK2000-40 16 3/8 26 1/4 12 16 1/2 6 7/8 12 10 3/8 2 1/4 14 3/4 322
RK2000-75 16 3/8 26 1/4 12 16 1/2 6 7/8 12 10 3/8 2 1/4 14 3/4 322
RK3000-30 19 3/4 26 3/4 14 19 1/2 8 7/8 12 12 3/4 2 1/2 17 3/4 436
RK3000-80 19 3/4 26 3/4 14 19 1/2 8 7/8 12 12 3/4 3 17 3/4 471
RK4500-20 19 7/8 30 1/4 14 22 3/4 8 7/8 12 12 7/8 1 1/2 17 3/4 662
RK4500-50 19 7/8 30 1/4 14 22 3/4 8 7/8 12 12 7/8 1 1/2 17 3/4 675
RK6000-40 23 1/2 35 3/4 18 23 3/4 10 3/4 16 14 1/2 2 3/4 21 1/4 1061
RK6000-75 23 1/2 35 3/4 18 23 3/4 10 3/4 16 14 1/2 2 2/3 21 1/4 1140
