CP Electric Winches and Hoists Drawing

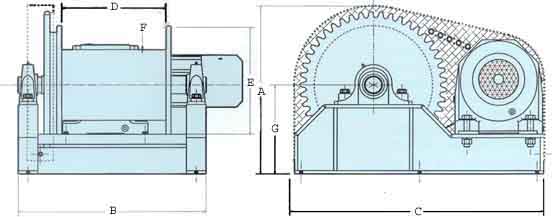

CP Series Winch Drawing

CP Series Winch Drawing

2,000-25,000 Lbs. Capacity
Dimensions (inches)
Model A B C D E F G Weight
CP2000-15 17 22 1/2 29 12 12 6 5/8 9 365
CP2000-25 17 22 1/2 29 12 12 6 5/8 9 379
CP2000-40 17 22 1/2 29 12 12 6 5/8 9 395
CP2000-70 17 22 1/2 29 12 12 6 5/8 9 395
CP3000-20 20 25 1/2 36 14 14 8 5/8 10 707
CP3000-50 20 25 1/2 36 14 14 8 5/8 10 723
CP4000-40 20 25 1/2 36 14 14 8 5/8 10 814
CP4000-70 20 25 1/2 36 14 14 8 5/8 10 872
CP6000-20 26 30 3/4 44 18 18 10 3/4 13 1290
CP6000-45 26 30 3/4 44 18 18 10 3/4 13 1370
CP6000-100 26 30 3/4 44 18 18 10 3/4 13 1550
CP7500-30 26 30 3/4 44 18 18 10 3/4 13 1330
CP10000-10 29 33 3/4 51 20 20 12 3/4 15 1380
CP10000-30 29 33 3/4 51 20 20 12 3/4 15 1490
CP10000-60 29 33 3/4 51 20 20 12 3/4 15 1620
CP15000-25 39 40 62 30 30 16 20 1890
CP15000-60 39 40 62 30 30 16 20 2030
CP25000-15 48 58 81 40 40 24 25 2900
CP25000-40 48 58 81 40 40 24 25 3150
CP25000-70 48 58 81 40 40 24 25 3280
