BP Electric Winches and Hoists Drawing

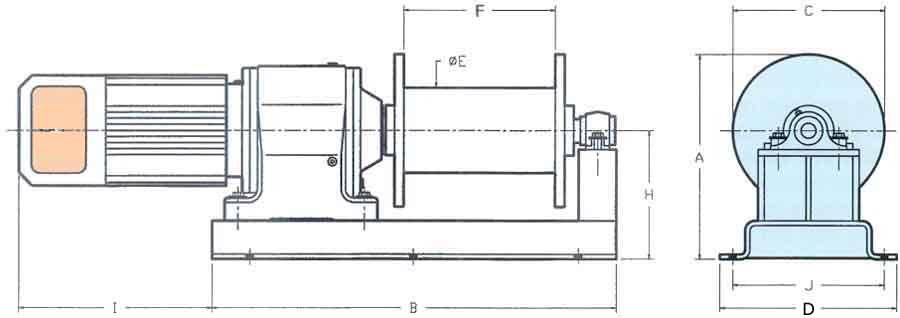

BP Series Winch Drawing

BP Series Winch Drawing

Dimensions (inches) Weight
Model A B C D E F H I J  (Lbs.)
BP500-20 10 1/2 21 1/2 8 11 3/4 4 1/2 8 6 1/2 10 3/8 10 1/4 122
BP500-45 10 1/2 21 1/2 8 11 3/4 4 1/2 8 6 1/2 12 1/4 10 1/4 128
BP800-30 10 1/2 21 1/2 8 11 3/4 4 1/2 8 6 1/2 12 1/4 10 1/4 128
BP1000-25 10 1/2 21 1/2 8 11 3/4 4 1/2 8 6 1/2 12 1/4 10 1/4 128
BP1000-50 10 1/2 21 1/2 8 11 3/4 4 1/2 8 6 1/2 13 3/4 10 1/4 142
BP1500-20 15 1/8 28 3/4 12 16 1/2 6 7/8 12 9 1/8 12 1/4 14 3/4 256
BP1500-40 15 1/8 28 3/4 12 16 1/2 6 7/8 12 9 1/8 13 14 3/4 269
BP2000-15 15 1/8 28 3/4 12 16 1/2 6 7/8 12 9 1/8 12 1/4 14 3/4 256
BP2000-45 15 1/8 28 3/4 12 16 1/2 6 7/8 12 9 1/8 15 1/8 14 3/4 288
BP3000-20 18 1/8 31 3/8 14 19 1/2 8 7/8 12 11 1/8 13 1/4 17 3/4 461
BP3000-50 18 1/8 31 3/8 14 19 1/2 8 7/8 12 11 1/8 15 1/4 17 3/4 480
BP3000-80 18 1/8 31 3/8 14 19 1/2 8 7/8 12 11 1/8 18 1/4 17 3/4 517
BP4500-20 19 3/8 36 1/4 14 22 3/4 8 7/8 12 12 3/8 14 3/4 20 1/2 651
BP4500-50 19 3/8 36 1/4 14 22 3/4 8 7/8 12 12 3/8 17 3/4 20 1/2 687
BP6000-40 22 1/2 41 3/4 18 23 3/4 10 3/4 16 13 1/2 14 1/2 21 1/4 1015
