Aluminum Marine Deck Chocks

Aluminum Bulwark Chock & Trim Ring

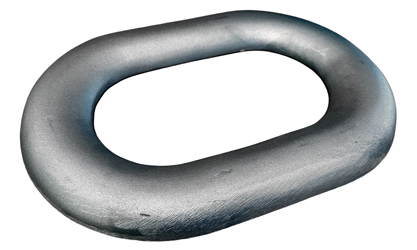

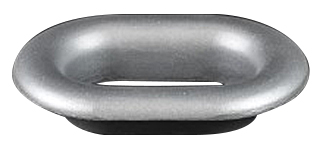

Aluminum Bulwark Chock

Aluminum Bulwark Chock

ABC-C-4, 5 and 6 Style

Aluminum Bulwark Trim Ring

ABTR-C-5, 6 and 8 Style

From 2x4 inch to 4.75 x 8.5 inch opening

A356 Aluminum

In Stock

Purchase ONLINE Aluminum Marine Deck Chocks

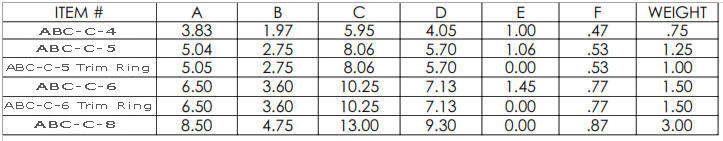

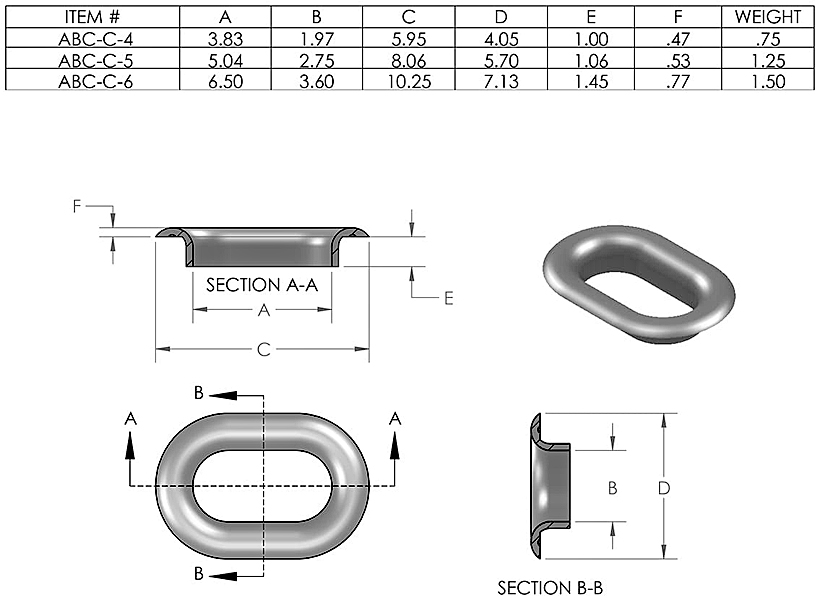

BULWARK CHOCK

Item	Compatible	A	B	C	D	E	F	Weight
	Trim Ring
ABC-C-4		3.83	1.97	5.95	4.05	1.00	.47	.75
ABC-C-5	ABTR-C-5	5.04	2.75	8.06	5.70	1.06	.53	1.25
ABC-C-6	ABTR-C-6	6.50	3.60	10.25	7.13	1.45	.77	1.50

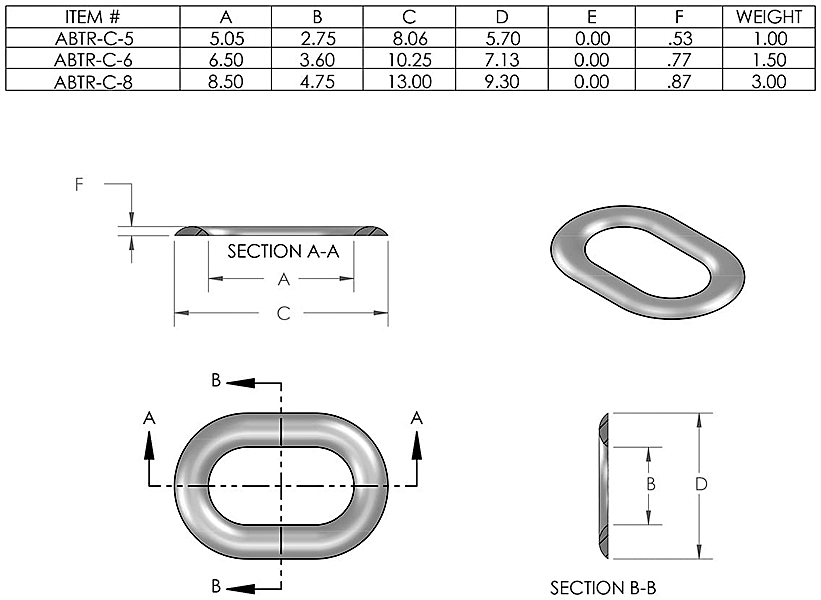

BULWARK TRIM RINGS

Item	Compatible	A	B	C	D	E	F	Weight
	Chock
ABTR-C-5	ABC-C-5	5.05	2.75	8.06	5.70	-	.53	1.00
ABTR-C-6	ABC-C-6	6.50	3.60	10.25	7.13	-	.77	1.50
ABTR-C-8		8.50	4.75	13.00	9.30	-	.87	3.00

** Measurements in Inches and Pounds
