Marine Watertight Doors

Watertight Doors on Ships

Class B

This product is designed for ships super structure

It meets the requirements of ISO 6042-1980 and JISF 2318-76

Class Society Approval Upon Request: ABS, DNV-GL, BV, CCS, Etc.

Class A, B, C: Up to 63 x 35.4 inch (1600mm x 900mm) Clear Opening

Class D : Up to 63 x 35.4 inch (1600mm x 900mm) Clear Opening

Modifications and Customization Possible

Rounded or Square Doors Available in Each Class

  Hand Operated:

Any Class Door Can Be Operated with:

Quick Acting Hand Wheel

Quick Acting Hand Lever

Individual Dogs

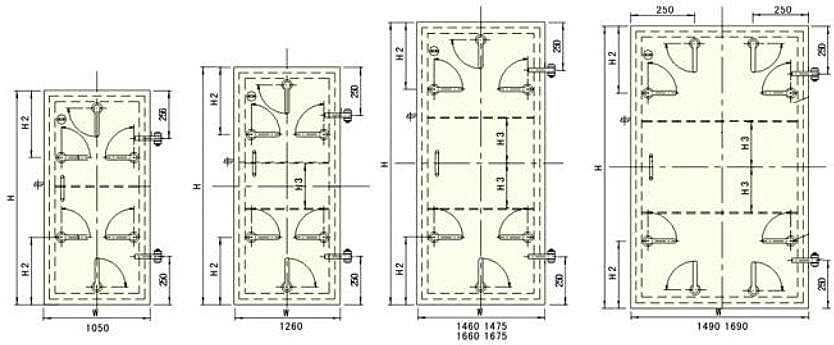

BF = CLASS B and F Square Style

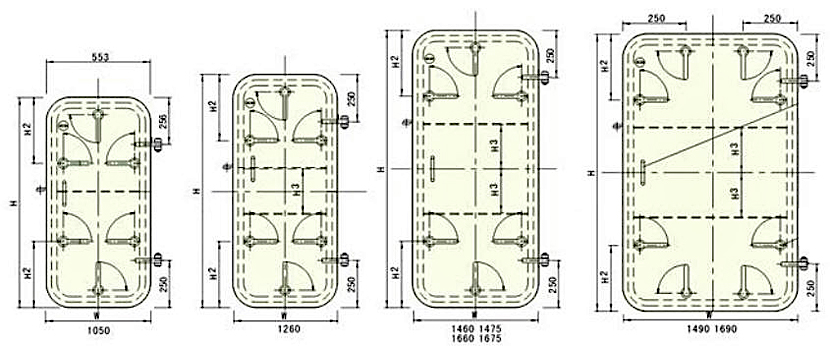

BY = CLASS B and Y Round Style
