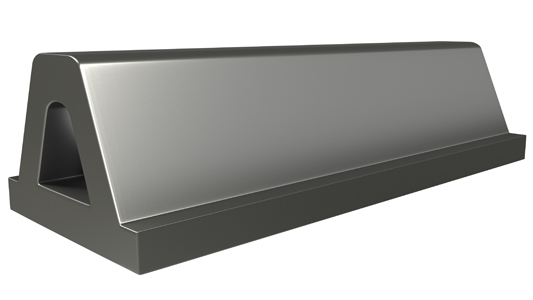

Arch Fender Trapezoidal TWS Series

Arch Fender Trapezoidal TWS Series


Load Curves - Trapezoidal W Series Marine Rubber Fender

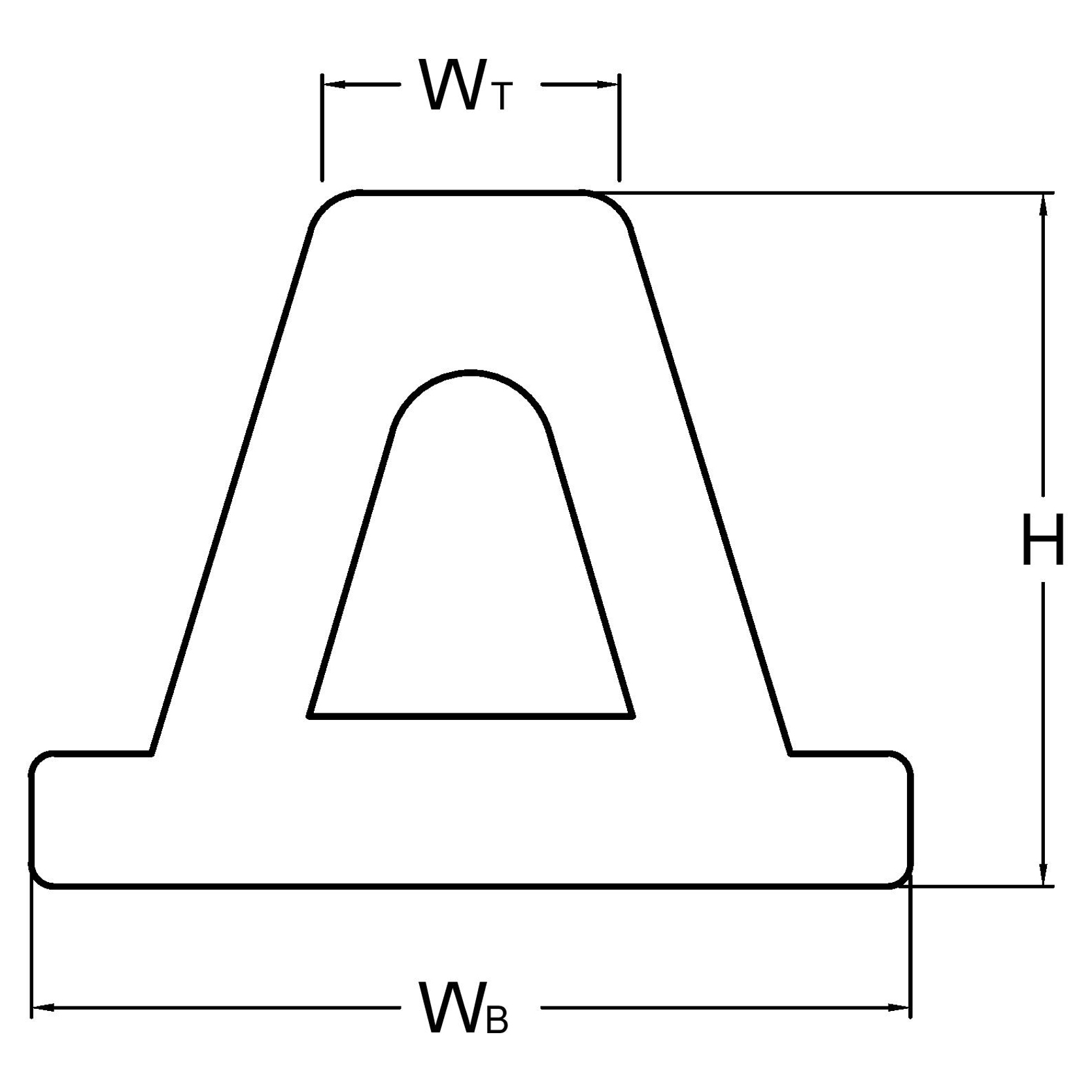

Cross Section Sizes Per Chart Below

Cut To Length as Desired

Maximum Length: 20 Feet in Most Cases

Pre Drilled Mounting Holes if Desired

Pre Curved to Match Radius if Desired

High Quality Black or Non Marking Grey EPDM

Standard Hardness of 75 Durometer

Custom Materials and Cross Sections Available


Download Marine Extruded Rubber Fender Catalog


Arch Fender Product Catalog


Information Required to Quote Extruded Marine Rubber Fenders

Marine Extruded Rubber Fender Compound Specifications

How to Size Marine Extruded Rubber Fenders

Arch Fender Trapezoidal TWS Series  Arch Fender Trapezoidal TWS Series


Part

Height

Width Base

Width Top

Number

H

WB

WT

TWS-10

10

18 1/2

5 1/2

TWS-13

13

21 1/2

7 3/8

TWS-15

15

24 3/4

8 5/8


All Measurements in Inches

Custom and Modified Cross Sections Available
