Ship and Barge Haul Out Marine Air Bags

Specifications

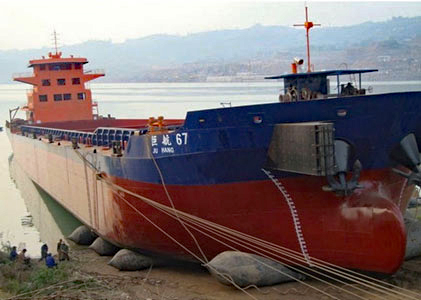

Marine Airbags - Ship Launching Airbags

Product certified to ISO 14409 by BV or CCS if desired

DWT of 60,000 Tons and More

Information Needed To Calculate Ship Dry Docking Airbags:

1. Type of vessel

2. Length of vessel overall and at keel

3. Molded breadth of vessel

4. Vessel's actual launched weight (gravity weight) without cargo

5. Block coefficient of vessel

6. Draft of stern and bow

7. Center of gravity position

8. Type of ground ship is built on (dirt, concrete, etc.)

9. Height of wooden blocks that support vessel

10. Angle degree of slipway (Land, not under water)

11. Water survey data of end of slipway area

12. Tide schedule at site

13. Distance from vessel stern to the end of slipway

14. Pictures of vessel (stern, bow) and slipway

15. Angle or Grade of haul out / launching area

Marine Airbags - Ship Launching Airbags

Working Pressures:
(D = Diameter in Meters. Layers = Rubber Layers)

Type	D=0.8m	D=1.0m	D=1.2m	D=1.5m	D=1.8m	D=2.0m
3 layers	0.13MPA	0.10MPA	0.09MPA	0.07MPA	0.06MPA	0.05MPA
4 layers	0.17MPA	0.13MPA	0.11MPA	0.09MPA	0.08MPA	0.07MPA
5 layers	0.21MPA	0.17MPA	0.14MPA	0.11MPA	0.09MPA	0.08MPA
6 layers	0.25MPA	0.20MPA	0.17MPA	0.13MPA	0.11MPA	0.10MPA
7 layers	0.29MPA	0.23MPA	0.20MPA	0.15MPA	0.13MPA	0.12MPA
8 layers	0.33MPA	0.26MPA	0.23MPA	0.17MPA	0.15MPA	0.14MPA
9 layers	0.37MPA	0.29MPA	0.26MPA	0.19MPA	0.17MPA	0.16MPA
10 layers	0.41MPA	0.32MPA	0.29MPA	0.21MPA	0.19MPA	0.18MPA

Marine Airbags - Ship Launching Airbags

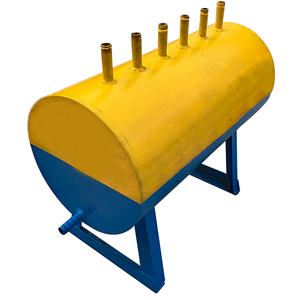

Inflation Manifold

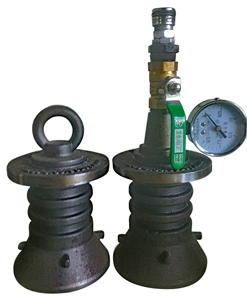

Airbag End Fittings

Inflation Hose
