Container Foundations

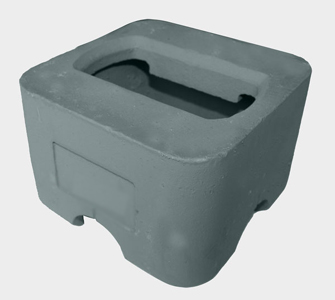

AC-B1 Single Raised Container Foundation

raised single container foundation

AC-B1 Single Raised Container Foundation

Part Numbers:	Height	Status
AC-B1/110 (Standard)	110mm	In Stock
AC-B1/XXX	XXX As Needed	Custom Made

Purchase ONLINE Small Quantity of AC-B1 Single Raised Foundation

Weld to the deck or hatch cover.

Industry Standard is 110 mm height

Special height available upon request

AC-B1 Single Raised Container Foundation

Elongated Hole Foundations available here: Elongated Foundations

Counter part: Container Securing Twistlocks

Type and Test Class Approved on Request

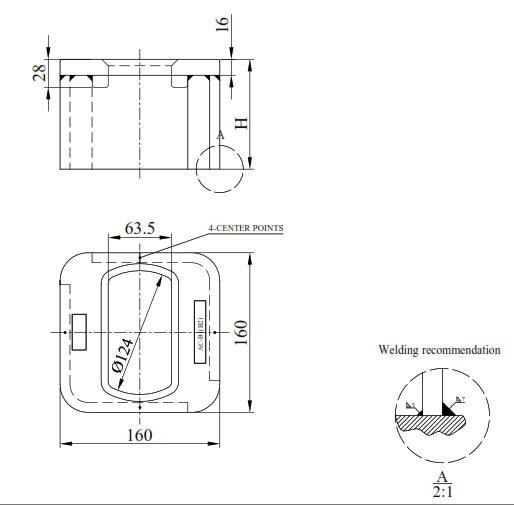

Download Complete Container and Cargo Securing Catalog with Drawings

How Do Container Ships Work?

How Does A Forge Work?

Return to Container Securing: Main Catalog Page

Other Equivalent Equipment
Cargotec / MacGregor	TF-11
German Lashing	RS-11.1
SEC	SF-C1
All Set	D92A
Peck and Hale	F771
