Container Foundations

AC-B2 Single Raised Container Foundation

raised double container foundation
   AC-B2 Double Raised Container Foundation

Part Numbers:


Centers Status

AC-B2/110/203 (Standard)

110mm 203mm In Stock
AC-B2/110/216 110mm 216mm In Stock
AC-B2/110/258 110mm 258mm In Stock
AC-B2/XXX/XXX XXX as Needed XXX as Needed Special Order

Weld to the deck or hatch cover.

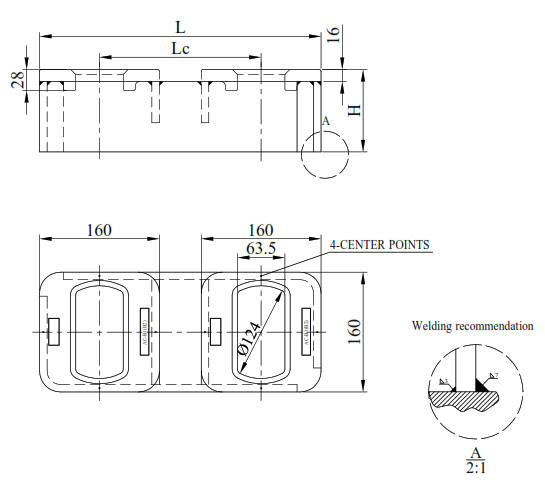

Industry Standard is 110 mm height and 203 mm ISO hole center to center distance

Other ISO hole center to center distances are available (197, 216, 258, etc)


Special height and distance available upon request


raised double container foundation

Elongated Hole Foundations available here: Elongated Foundations


Counter part: Container Securing Twistlocks


Type and Test Class Approved on Request


Download Complete Container and Cargo Securing Catalog with Drawings
