Dovetail Container Foundation

AE-A1 Single Dovetail Foundation 45 Degree

Class Society Approved: ABS, DNV-GL, CCS and Others

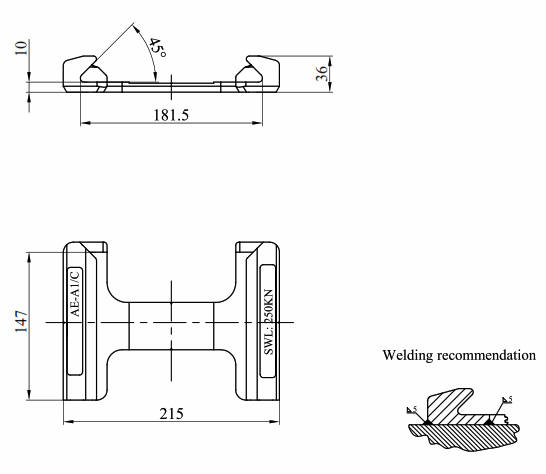

  AE-A1 Single Dovetail Container  Foundation 45 Degree

AE-A1 Single Dovetail Foundation
45 Degree (Special Order)


When Twistlock is removed from foundation the deck can be used for RO-RO or other use.



Weld to the deck or hatch cover.



AE-A1 Single Dovetail Container Foundation 45 Degree


Counter part: Dovetail Container Bottom Twistlock



Type and Test Class Approved on Request



Download Complete Container and Cargo Securing Catalog with Drawings



Container Lashing Design: Ship or Barge



Cargo Securing Manual Approval By Class Society



Container Ship Hatch Covers and Lashing Bridges



How Do Container Ships Work?



Similar Design and Function Cross Reference:



GLS AE-A1

MacGregor APT-1-L

SEC DF-1L

German Lashings DP-12.63

Lucky Sea AA-2C

SC Lashings DF-45

All Set D5A

TEC FE-03-1

Taiyo 1-22

Taiyo 1-23

MEC A6.1
