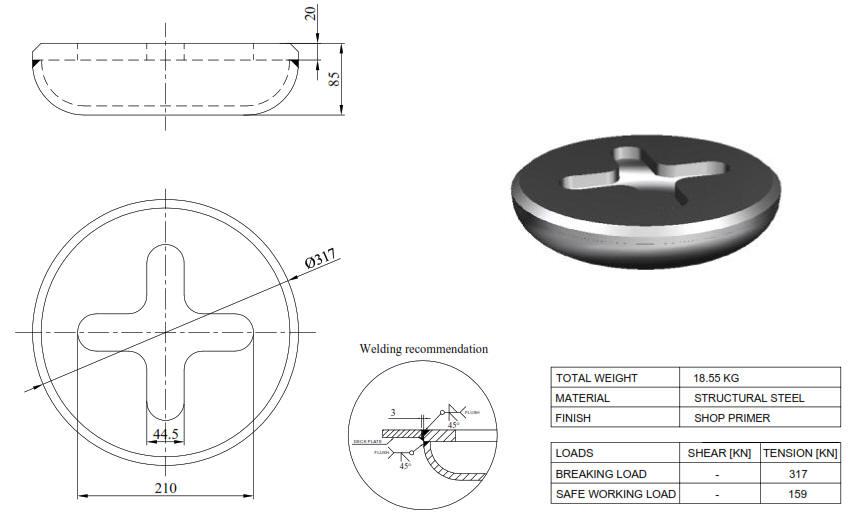

Flush Cloverleaf Cargo Lashing Point

CA-E4 According to NavSea 804-1213717

Flush Cloverleaf Cargo Lashing Point 804-1213717

Flush Lashing Pot CA-E4

M.B.L. 31 Tons

317mm Diameter

44.5mm Inside Opening Width

MBL 315 KN Tension

3/4 Flush Type Deck Socket

According to NAV SEA Drawing 804-1213717

With Exception of Cast Bowl, Forged Bowl on Special Order

Counter Part is the Elephants Foot or the Speed Lash with Elephants Foot.

Type and Class Approved on Request

Other Equivalent Equipment

Peck and Hale F518-1E

Buffers USA 5011-1611
