Pillow Block Split Roller Bearings

03 Series (extra heavy duty) - 8 Bolt

3 5/16 inches (100 mm) to 10 inches (160 mm)

Pillow Block Split Roller Bearings  Pillow Block Split Roller Bearings

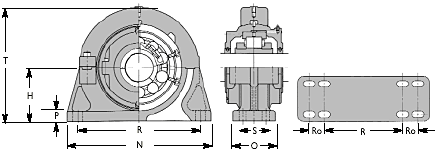

Pillow blocks - 8 bolt

Shaft diameter (d) Reference Pillow block casting only H N O P Bolts R Ro S T Wt.
(lb.)
(kg)
Pillow block complete
inches mm inches millimeters Min Max
11 280 03 EBCP 1100 03 EBCP 280 P83 14 1/2
368
37
940
11
280
2 3/4
70
8-1 1/2
M36
19
482
20 1/2
521
4 3/4
121
7
178
30 3/4
785
1320
600
12 300 03 BCP 1200 03 BCP 300 P65 18
457
43
1092
16 1/2
420
3
76
8-1 1/2
M36
25 3/4
654
27 1/4
692
4
102
13
330
36
915
2500
1135
13 320 03 BCP 1300 03 BCP 320 P66 20 13/32
518
47
1194
14
356
3 1/8
80
8-1 1/2
M36
29 1/4
743
30 3/4
781
4 1/4
108
10 1/2
266
40 3/4
1035
2800
1270
14 340
360
03 EBCP 1400 03 EBCP 340
03 EBCP 360
P86 18 1/2
470
48
1220
12 1/2
318
3 1/4
82
8-1 3/4
M42
25
635
27
686
5 1/4
133
7 1/2
190
39 1/4
1000
2540
1770
15 380
400
03 BCP 1500 03 BCP 380
03 BCP 400
P68 22
559
50
1270
15 1/2
394
3 5/8
92
8-1 3/4
M42
30 3/4
781
32 3/4
832
4 1/2
114
11 1/2
292
44
1120
3900
1770
17 420
440
03 EBCP 1500 03 EBCP 420
03 EBCP 440
P89 20
508
50
1270
14 1/4
360
3 1/2
90
8-2
M48
26 1/4
667
28 1/4
718
5 7/8
149
8 1/4
210
42 1/4
1075
2920
1325
18 460 03 EBCP 1800 03 EBCP 460 P90 21 21/32
550
54
1370
15
380
3 3/4
95
8-2
M48
29 3/4
756
31 3/4
806
5 7/8
149
8 5/8
220
45 3/4
1165
3500
1590
20 500
530
03 BCP 2000 03 BCP 500
03 BCP 530
P94 24 1/2
622
63
1600
16
406
4
102
8-2 1/4
M56
36
914
38
965
6 1/2
165
9 1/2
242
52 3/4
1340
5510
2500
22 560 03 EBCP 2200 03 EBCP 560 P94 24 1/2
622
63
1600
16
406
4
102
8-2 1/4
M56
36
914
38
965
6 1/2
165
9 1/2
242
52 3/4
1340
5080
2300
23 600 03 EBCP 2300 03 EBCP 600 P95 24 1/2
622
63
1600
16
406
4
102
8-2 1/4
M56
36
914
38
965
6 1/2
165
9 1/2
242
52 3/4
1340
5130
2330
Add mm for millimeters and EX for expansion type or GR for fixed type to reference i.e. 03 BCP 500mm GR.

   Roller Bearings Unit and Cartridge Unit Only

(see above for complete Pillow Block)

Roller Bearing   Cartridge Unit
Shaft diameter (d) Reference D C B
B1
Q Wt.
(lb.)
(kg)
References Cartridge housing only G J L Available axial movement
Note (1)
Wt.
(lb.)
(kg)
Bearing only Cartridge, bearing and seal
inches mm inches millimeters inches millimeters
11 280 03 EB 1100 03 B 280 19.500
495.30
9.606
244
5.500
139.7
7.797
452
400
182
03 EBC 1100 03 EBC 280 03 EC 83 22 1/2
571.50
6 1/2
165
14 1/32
356
1 13/32
35.7
850
386
12 300 03 B 1200 03 B 300 22.000
558.80
9.606
244
5.500
139.7
19.528
496
525
238
03 BC 1200 03 BC 300 03 C 65 25 1/4
641.40
6 1/2
165
14 9/16
370
1 23/32
43.7
1030
468
13 320 03 B 1300 03 B 320 24.500
622.30
10.709
272
6.311
160.4
21.653
550
720
327
03 BC 1300 03 BC 320 03 C 66 28 1/4
717.60
6 3/4
170
16 1/4
412
-
-
1320
600
14 340
360
03 EB 1400 03 B 340
03 B 360
24.250
615.95
10.984
279
6.221
158
21.890
556
700
318
03 EBC 1400 03 EBC 340
03 EBC 360
03 EC 86 27 3/4
704.90
7 3/4
196
16 3/16
426
-
-
1500
703
15 380
400
03 B 1500 03 B 380
03 B 400
27.000
685.80
11.496
292
6.563
166.7
24.016
610
950
431
03 BC 1500 03 BC 380
03 BC 400
03 C 68 30 1/2
774.70
8
202
17
432
-
-
1830
830
17 420
440
03 EB 1700 03 B 420
03 B 440
27.560
700.00
11.181
284
6.299
160
25.197
640
870
395
03 EBC 1700 03 EBC 420
03 EBC 440
03 EC 89 31 1/32
788
7 7/8
200
17 3/16
436
-
-
1770
803
18 460 03 EB 1800 03 B 460 29.136
740.00
11.575
294
6.693
170
26.772
680
950
431
03 EBC 1800 03 EBC 460 03 EC 90 33 1/16
840.00
7 7/8
200
17 1/2
444
-
-
1950
885
20 500
530
03 B 2000 03 B 500
03 B 530
33.500
850.90
11.813
300
7.375
187.4
30.118
765
1610
730
03 BC 2000 03 BC 500
03 BC 530
03 C 94 37 3/4
958.90
8
204
19 13/16
502
-
-
3300
1500
22 560 03 EB 2200 03 B 560 34.000
863.60
12.203
310
7.748
196.9
31.496
800
1400
635
03 EBC 2200 03 EBC 560 03 EC 94 37 3/4
958.90
8
204
19 1/16
484
-
-
2880
1306
23 600 03 EB 2300 03 B 600 35.040
890.00
12.203
310
7.244
184.0
32.520
826
1500
680
03 EBC 2300 03 EBC 600 03 EC 95 38 21/32
990.00
8
204
19 1/16
484
-
-
3090
1400
Add mm for millimeters and EX for expansion type or GR for fixed type to reference i.e. 03 B 150mm EX. Chamfers
Inner race: Sizes to 6/ 150mm : 3/32 / 2.5mm, over 6 / 150mm : 1/8 / 3mm
Outer race: 1/8 / 3mm
(1) Offset from centerline to accommodate axial movement should not exceed half this amount.
(2) Q diameter clears clamp rings.
For these dimensions please consult our technical department.
