Ballast Tank Anodes

Sacrificial Anodes for Marine Cathodic Protection

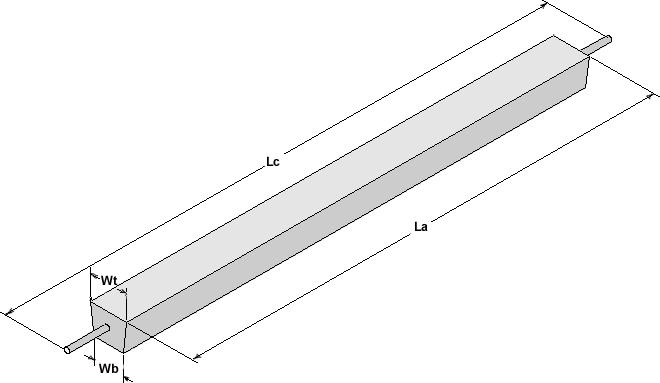

Ballast Tank Sacrificial Anodes

Lengths from 51 to 86 Inch

Widths from 2 to 6-3/4 Inch

Heights from 2 to 6-1/2 Inch

Aluminum ballast tank anodes are available in many different shapes, weights, and core configurations.

While many of these configurations are listed in the following charts, many more anodes are available but not shown.

For assistance selecting the appropriate ballast tank anode, contact us at info@pacificmarine.net

Typical Chemical Composition
Element	Percentage
Indium (In)	0.016 to 0.02%
Zinc (Zn)	4.75 to 5.75%
Silicon (Si)	0.08 to 0.12%
Copper (Cu)	0.003% Maximum
Iron (Fe)	0.12% Maximum
Cadmium (Cd)	0.002% Maximum
Others, each	0.02% Maximum
Others, total	0.05% Maximum
Aluminum	Remainder

Performance Characteristics
Anode Capacity	1150 amp hours per pound (Minimum)
Potential (Calomel)	1.080 volts (Minimum)
Consumption Rate	7.6 pounds per amp year
