S3CSL Sand and Slurry

Submersible Hydraulic Powered Pumps

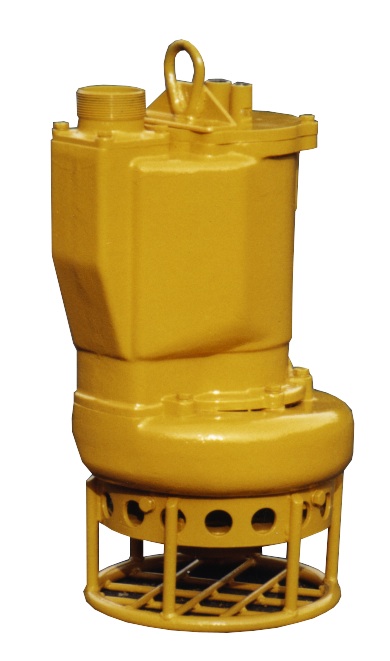

S3CSL Sand and Slurry Submersible Hydraulic Powered Pumps

Submersible Sand and Slurry



Up to 460 GPM Flow Rate

3 Inch Discharge

Up to 85 Feet Head Pressure



Information Needed to Quote Hydraulic Powered Submersible Pumps



How to Size and Specify a Pump



Weight 231 lbs. (105 kg)

Height 30 1/4" (77 cm)

Diameter 16 1/4" (41 cm)

Discharge 3" NPT

Solid Handling 1 1/2" (38 mm)

Hose Ports 1/2" and 3/4" NPT (F)

Impeller/Screw High Chrome Alloy

Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)

Input Flow Max. 10 GPM (38 LPM)

Operating Pressure Max. 3000 PSI (204 Bar)

Power Source Any Open Center Hydraulic System



Options and Accessories: Submersible Hydraulic Powered Pumps



Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps

Lagoon Raft

Silt Jetting Ring

Hydraulic Controls

Slurry Gate
