S3TC General Purpose

Submersible Hydraulic Powered Pumps

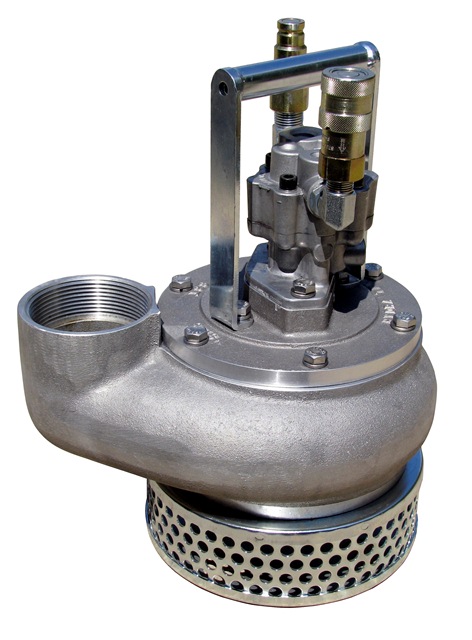

General Purpose Hydraulic Powered Pump S3TC

Submersible High Efficiency Some Solids



Up to 450 GPM Flow Rate

3 Inch Discharge

Up to 92 Feet Head Pressure



Information Needed to Quote Hydraulic Powered Submersible Pumps



How to Size and Specify a Pump



Weight 28 lbs. (13 kg)

Height 14" (36 cm)

Diameter 11 3/4" (30 cm)

Discharge 3" NPT(F)

Inlet Flange 3" 125# ASA

Solid Handling 3/4" (2 cm)

Hose Ports 1/2" NPT (F)

Pump Body Aluminum

Impeller/Screw Stainless Steel

Elastometers Buna N (Std)

Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)

Input Flow Max. 8 GPM (30 LPM)

Operating Pressure Max 2500 PSI (170 Bar)

Power Source Any Open Center Hydraulic System



Options and Accessories: Submersible Hydraulic Powered Pumps



Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps

Lagoon Raft

Silt Jetting Ring

Hydraulic Controls

Slurry Gate
