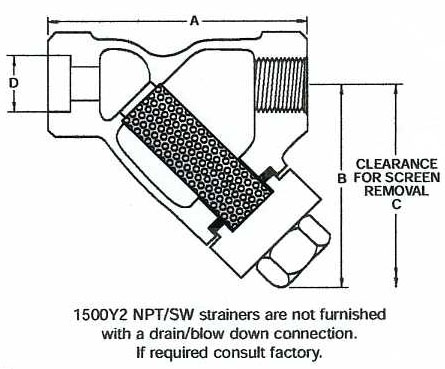

1500 Lbs. Y Strainer

1500 Y2 Series

1500 Lbs. Y Strainer
1/2 inch to 2 inch
Carbon Steel, Stainless Steel, Chrome Moly
NPT and Socket Weld

Standard Screen Sizes: (Other Sizes Available)
1/2" to 1 1/2" = 1/32" perforations
2" = 3/64" perforations

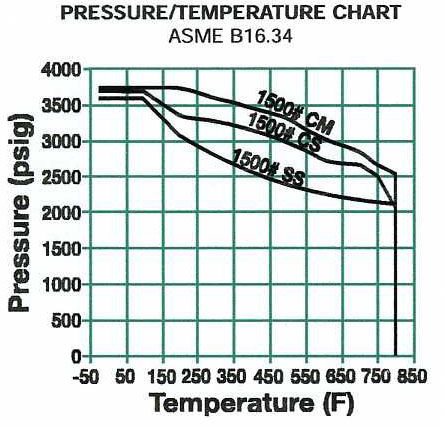

Pressure Drop vs. Flow Rate Open Area Ratios

1500 Lbs. Y Strainer 1500 Lbs. Y Strainer

Replacement Strainer Baskets
