LNG Liquefied Natural Gas Fill Nozzle

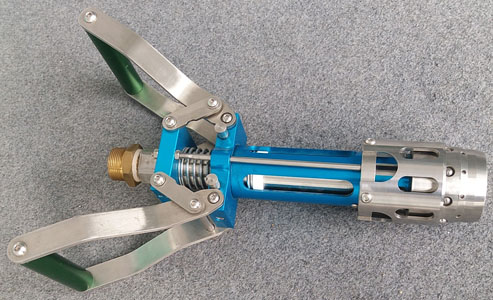

LNG Liquified Natural Gas Filling Nozzle  LNG Liquefied Natural Gas Fill Nozzle

    LNG Fill Nozzle



Counter Part: LNG Liquefied Natural Gas Fill Receptacle



MediumLNG and LN2

Weight4.98kg

Max. Work Pressure4.0Mpa

Explode Pressure13.8Mpa

Flowrate190L/min

Design temp-196 to +85 degree C = -320 to 185 F

Leakage ZERO

Avg. Bond Time 3s

Avg. Depart Time 2s

Port Connection1 - 5/16 -12UN or M36x2

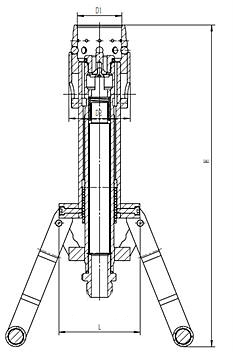

LNG Liquefied Natural Gas Fill Nozzle


Model

Major Outline and Port Size Spec mm

Port Thread

D1

D2

H

L

FN1

φ57.91

φ80.14

422.25

106.85

1 - 5/16 -12UN

FN2

φ57.91

φ80.14

422.25

106.85

M36×2
