Spring Damper Heavy Duty Caster Wheels

Solid Rubber with Steel Hub

Flanged or Twistlock or Side Lock Attachment Method

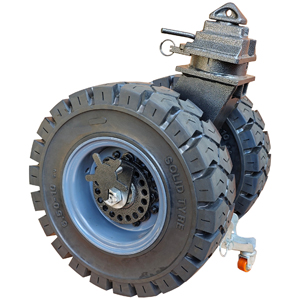

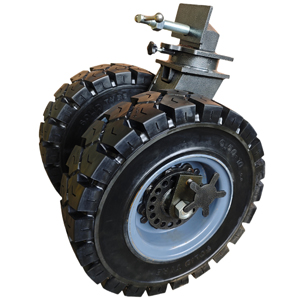

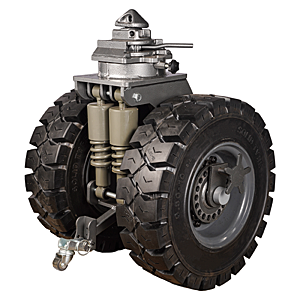

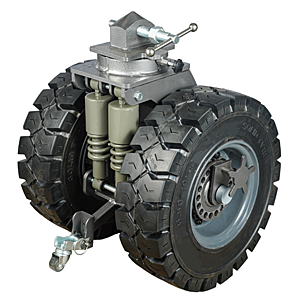

Heavy Duty Caster Wheels with Spring Damper

Solid Rubber Wheel on Steel Hub

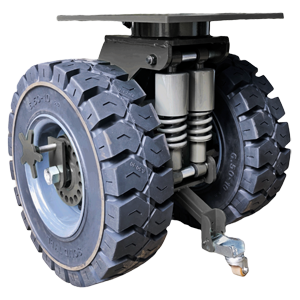

Flanged or Side Lock or Twistlock Attachment Method (Flanged Shown Above)

24 or 28 Inch Diameter (230 or 356mm)

Swivel Function with Swivel Lock Out

Safety Training Wheel for Easy Installation

Purchase ONLINE: Heavy Duty Caster Wheels

Information Needed For Custom Heavy Duty Caster Wheel Quotes

Part Number	Diameter	Attachment Method	Wheel	Core
F-DW-RSD-16-3.3	16"	Flanged	Solid Rubber	Steel
F-DW-RSD-21-4	21"	Flanged	Solid Rubber	Steel
F-DW-RSD-25-4.8	25"	Flanged	Solid Rubber	Steel
TL-DW-RSD-16-3	16"	Side Lock	Solid Rubber	Steel
TL-DW-RSD-21-3.5	21"	Side Lock	Solid Rubber	Steel
TL-DW-RSD-25-4.5	25"	Side Lock	Solid Rubber	Steel
SL-DW-RSD-16-3.3	16"	Side Lock	Solid Rubber	Steel
SL-DW-RSD-21-4	21"	Side Lock	Solid Rubber	Steel
SL-DW-RSD-25-4.8	25"	Side Lock	Solid Rubber	Steel

Mounting Type	Wheel Diameter (INCH)	Load Capacity (At 6KM/H Moving Speed) (KG)	Load Capacity (At 10KM/H Moving Speed) (KG)	Load Capacity (At 12KM/H Moving Speed) (KG)	Load Capacity (At 15KM/H Moving Speed) (KG)
Top Plate	16	3300	2600	2000	1300
	21	4000	3200	2400	1600
	25	4800	3800	2800	1800
Twist Lock	16	3000	2400	1800	1300
	21	3500	2800	2100	1400
	25	4500	3600	2700	1800
Side Lock	16	3300	2600	2000	1300
	21	4000	3200	2400	1600
	25	4800	3800	2800	1800

Heavy Duty Caster Wheels with Spring Damper
