Electric Winch-Hoist 12 Volt or 24 Volt

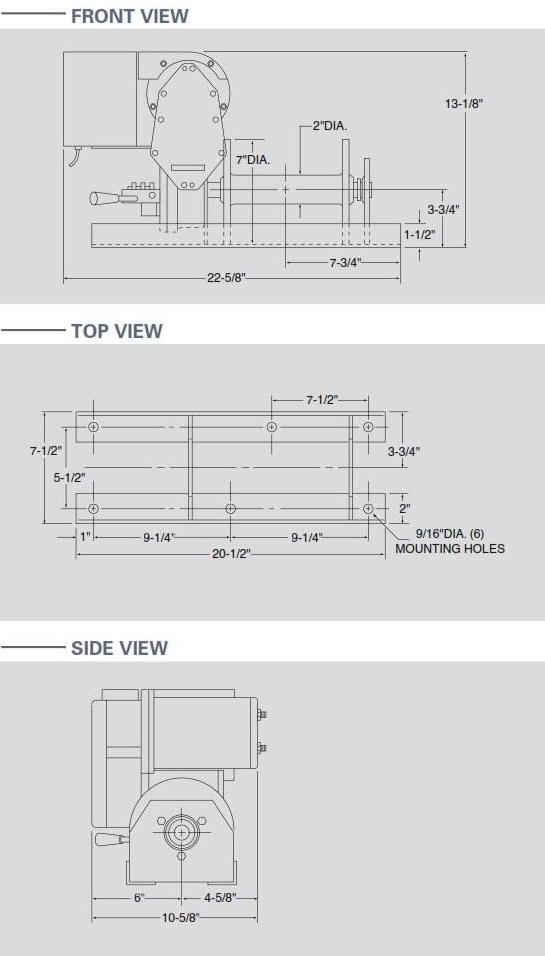

Model 10-12 Winch Hoist Drawing

Portable 12 Volt Electic Winch Hoist

Purchase ONLINE Light Duty and Portable Winch Hoist and Capstans

1,250 lbs. single line capacity
2,500 lbs. double line capacity

Operates off truck battery

Drum Capacity:
1/8" wire 3/16" wire 1/4" wire 5/16" wire
1,000 feet 450 feet 250 feet 150 feet

Gear System
175:1
Hardened steel worm and forged bronze worm gear.

Power:
12 VDC Battery Power / 10 amp no load / 100 amp full load

Speed:
20 RPM / 10 Feet Per Minute - No load
9 Feet Per Minute - 1,250 lbs. load / single line
5 Feet Per Minute - 2,500 lbs. load / double line

Duty Cycle:
15% (can operate average of 15 minutes per hour at full load)

Worm gear reduction for positive load holding
Rugged construction
12 volt permanent magnet motor
10' pendant control
High capacity cable drum
