Stainless Clip

Stainless Spring Clip Key Lock

Formed - 316 Stainless Steel

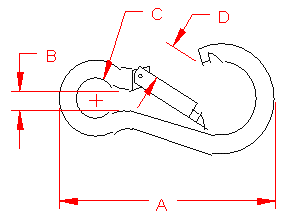

Item A Size B C D Weight
S0120-K050 2" 0.25" 0.31" 0.25" 0.04 lb
S0120-K060 2-3/8" 0.25" 0.34" 0.31" 0.06 lb
S0120-K070 2-3/4" 0.31" 0.43" 0.37" 0.1 lb
S0120-K080 3-1/4" 0.31" 0.43" 0.43" 0.15 lb
S0120-K100 4" 0.37" 0.50" 0.56" 0.28 lb
S0120-K120 4-3/4" 0.56" 0.68" 0.68" 0.41 lb
S0120-K160 6-3/8" 0.75" 0.87" 1.18" 0.78 lb
