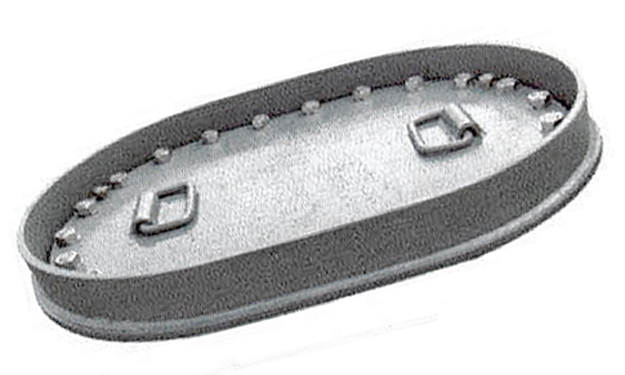

Recessed Marine Steel Manhole Covers

Recessed Tank Access Covers

Manhole / Tank Cover Recessed



Marine Recessed Manhole Cover - Tank Cover

With Handle Straps or Fixed Handles

Sizes Listed Below or Custom Hatch Sizes Available

Class Society Approved Upon Request (ABS, DNV-GL, LR, Etc.)

4mm to 18mm Plate Thickness



Custom Made Product On Request

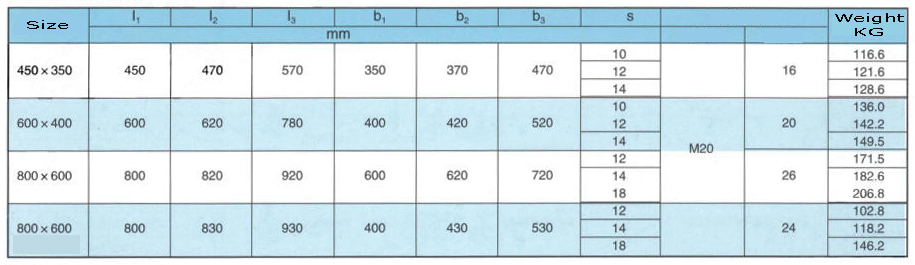

Sizes:

450 x 350mm / 18 x 14 Inches

600 x 400mm / 24 x 16 Inches

800 x 600mm / 32 x 24 Inches

800 x 600mm / 32 x 24 Inches (Oversize)

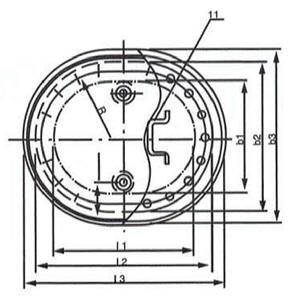

Recessed Marine Steel Manhole Covers



Recessed Marine Steel Manhole Covers

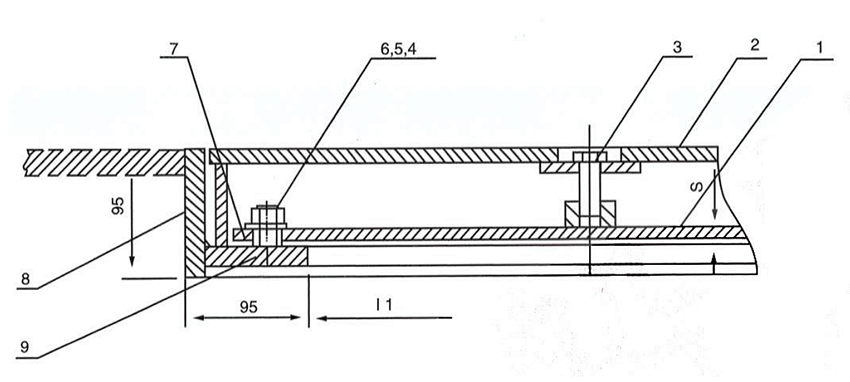

1. 1st Cover plate

2. 2nd Cover plate

3. Bolt

4. Bolt

5. Nut

6. Washer

7. Gasket

8. Combing Plate

9. Seat Ring

10. Sealing gasket

11. Swivel Handle



Recessed Marine Steel Manhole Covers
