Raised Marine Steel Manhole Covers

Raised Tank Access Covers

Raised Marine Steel Manhole Covers  Raised Marine Steel Manhole Covers



Marine Raised (4 Inch / 100mm) Manhole Cover - Tank Cover

With Handle Straps or Fixed Handles

Sizes Listed Below or Custom Hatch Sizes Available

Class Society Approved Upon Request (ABS, DNV-GL, LR, Etc.)

4mm to 14mm Plate Thickness



Custom Made Product On Request

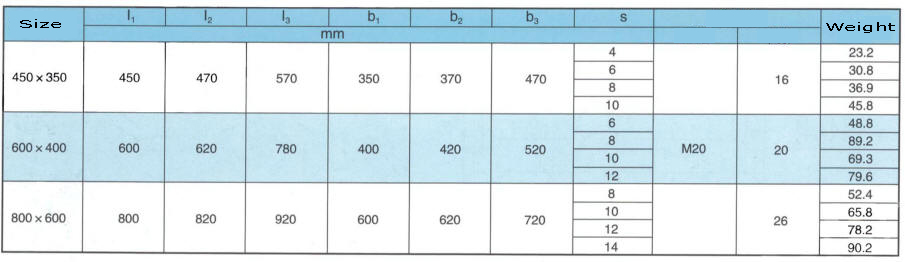

Sizes:

450 x 350mm / 18 x 14 Inches

600 x 400mm / 24 x 16 Inches

800 x 600mm / 32 x 24 Inches

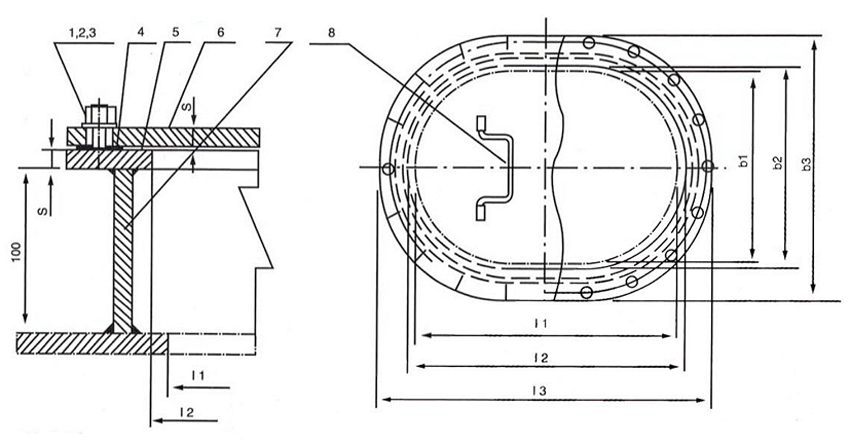

Raised Marine Steel Manhole Covers


1. Bolt Stud
2. Nut
3. Washer
4. Gasket
5. Seat Ring
6. Cover Plate
7. Combing Plate
8. Swivel Handle


Raised Marine Steel Manhole Covers
