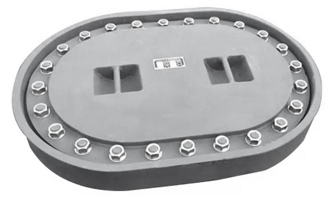

Flush Marine Manhole Covers

Flush Tank Access Covers

Manhole Cover - Tank Cover Flush



Marine Flush Manhole Cover - Tank Cover

With Recessed Handles

Sizes Listed Below or Custom Hatch Sizes Available

Class Society Approved Upon Request (ABS, DNV-GL, LR, Etc.)

14mm to 20mm Plate Thickness



Custom Made Product On Request

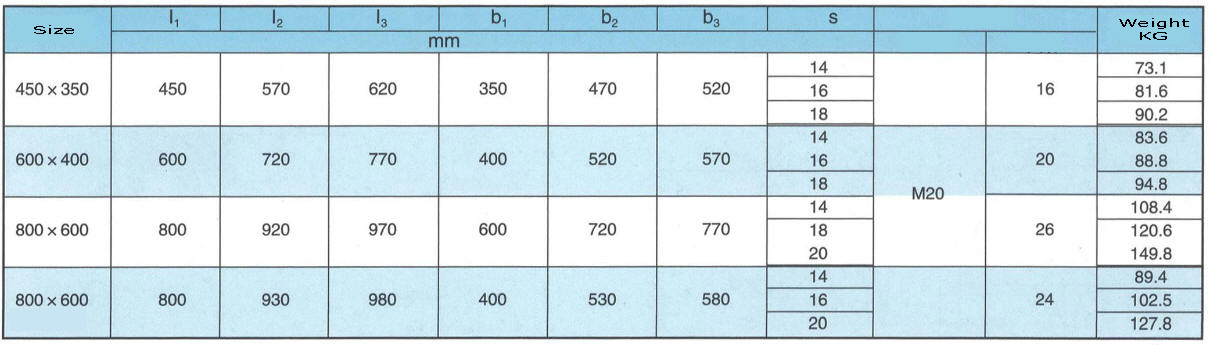

Sizes:

450 x 350mm / 18 x 14 Inches

600 x 400mm / 24 x 16 Inches

800 x 600mm / 32 x 24 Inches

800 x 600mm / 32 x 24 Inches (Oversize)

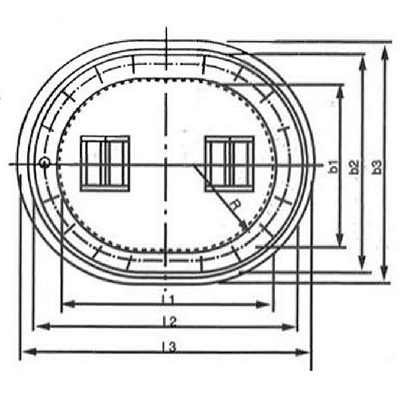

Flush Marine Manhole Covers Tank Access Cover



Flush Marine Manhole Covers Tank Access Cover

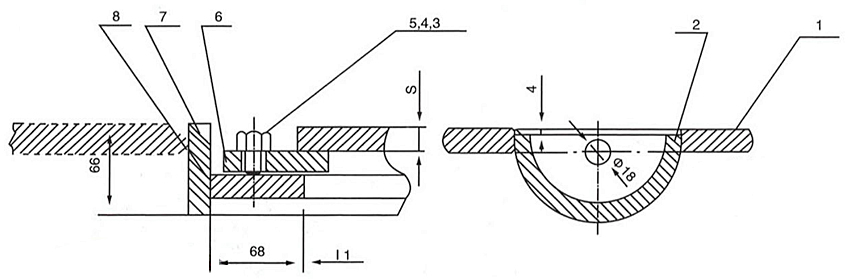

1. Cover Plate

2. Fixed Handle

3. Stud

4. Nut

5. Washer

6. Gasket

7. Combing Plate

8. Seat Ring

9. Sealing gasket



Flush Marine Manhole Covers Tank Access Cover
