Wire Rope Fairleads - Marine Fair Lead

Double Horizontal Fairlead

DH Series

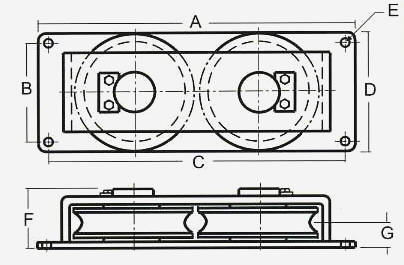

double horizontal fairlead sheave  double horizontal fairlead sheave

Cast Steel Sheaves - Compact Design
Precision Machined - Bronze Bushings
Easily Removable Shafts

Model Sheave Wire Rope Safe Work Dimensions
Number Diameter Size Load A B C D E F G
DH-1 6 1/2 4000 15 1/2 5 14 1/2 6 7/16 2 3/4 1 1/8
DH-2 8 5/8 8000 20 6 3/4 18 3/4 8 9/16 3 1/4 1 3/8
DH-3 10 3/4 12000 24.5  8 1/2 23 10 11/16 3 3/4 1 3/4
DH-4 14 7/8 20000 34 11 1/2 31 13 1/2 13/16 4 1/2 2 1/4
Larger sizes available.
All measurements in inches and pounds.
