Shipping Container End Tie Down Anchor

Secure a Ground Level Container

 Shipping Container End Tie Down Anchor



Purchase Online Small Quantities of ISO Shipping Container Lashing & Securing Equipment

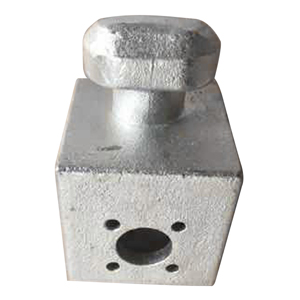

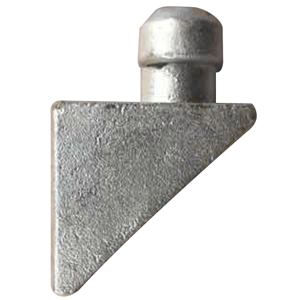

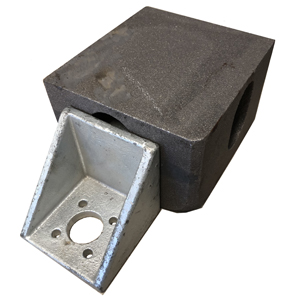

Shipping Container Anchor System

Secure Ground Level Container

One Required Per Corner

Twist Into End Corners

Secure as Needed to Below Surface



Shipping Container End Tie Down Anchor  Shipping Container End Tie Down Anchor  Shipping Container End Tie Down Anchor

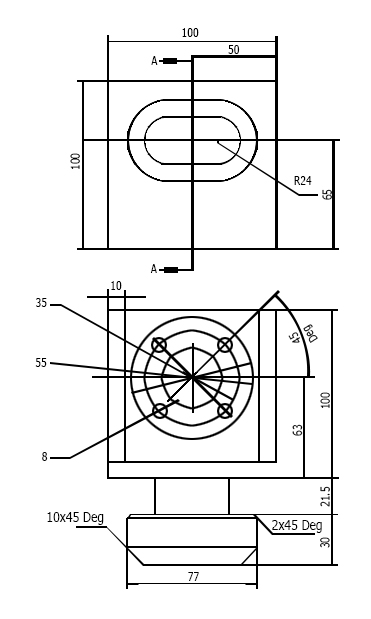

Dimensions in mm

35mm Center Diameter

55mm Bolt Hole Pattern

8mm Bolt Diameter


Shipping Container End Tie Down Anchor
