Cargo Lashing Chain and Hooks

CB-D3 w/Pin - Cargo Securing Hook - Chain Hook

Cargo Lashing Chain and Hooks  Cargo Lashing Chain and Hooks  Cargo Lashing Chain and Hooks

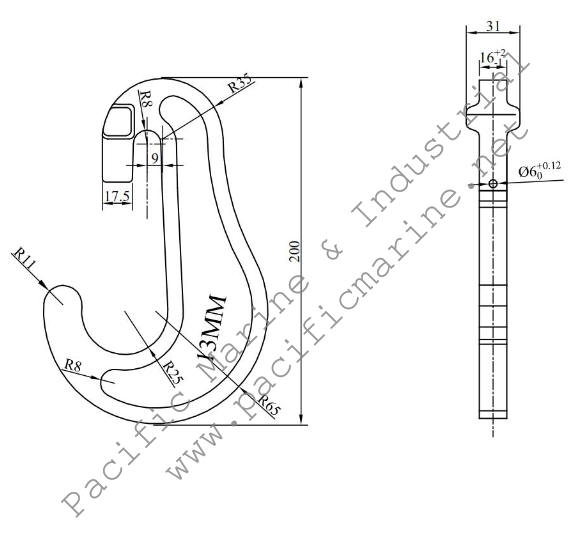

CB-D3 (With Pin)

Container Lashing Hook - Chain Hook



Specifications:

Works with 13mm Chain (and other chain sizes)

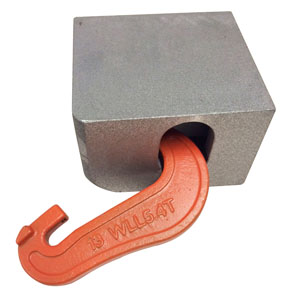

Fits into ISO 1161 Container Corners

Secure Chain with Pin After Insertion of Hook into Chain

5/8 Hook Free Opening

5/8 x 5/8 Square Hook Chain Receptacle

Working Load Limit 5.4 Tons

MBL Tension 200 kN

MBS Shear 100 kN

Cargo Lashing Chain and Hooks
