Johnson Duramax Marine Cutless

(Cutlass) Bearings

Metric Naval Brass Propeller Shaft Bearings

Propeller Shaft Bearings - Cutless Bearings

Johnson Duramax Marine Cutless Bearings   Johnson Duramax Marine Cutless Bearings


How to Install or Modify a Cutless Propeller Shaft Bearing



Clearance and Replacement Guidelines for Cutless Propeller Shaft Bearings


How to Choose A Propeller or Rudder Shaft Bearing and the Differences Between Bearing Types

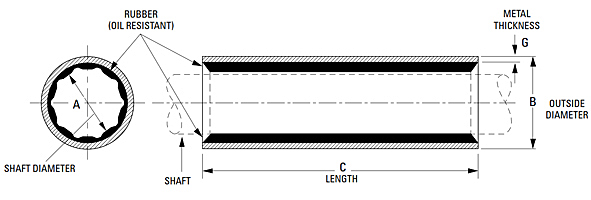

SHAFT / ID OD LENGTH Wall Thickness WEIGHT Purchase
   A - mm B - mm C - mm G - mm Pounds Online
25 40 100 2.54 .75

25x40 Duramax Cutless Bearing Purchase

28 42 112 2.35 .69

28x42 Duramax Cutless Bearing Purchase

30 45 120 3.07 1.13

30x45 Duramax Cutless Bearing Purchase

32 45 128 3.07 1.25

32x45 Duramax Cutless Bearing Purchase

35 50 140 3.07 1.44

35x50 Duramax Cutless Bearing Purchase

38 55 152 3.07 1.69

38x55 Duramax Cutless Bearing Purchase

40 55 160 3.07 1.81

40x55 Duramax Cutless Bearing Purchase

45 65 180 3.3 2.75

45x65 Duramax Cutless Bearing Purchase

50 70 200 3.26 3.06

50x70 Duramax Cutless Bearing Purchase

55 75 220 2.58 3.75

55x75 Duramax Cutless Bearing Purchase

60 80 240 3.26 4.43

60x80 Duramax Cutless Bearing Purchase

65 85 260 2.82 4.81

65x85 Duramax Cutless Bearing Purchase

70 90 280 4.76 5.81

70x90 Duramax Cutless Bearing Purchase

75 95 300 3.05 6.69

75x95 Duramax Cutless Bearing Purchase

80 100 320 3.17 7.68

80x100 Duramax Cutless Bearing Purchase

85 105 340 3.19 8.63

85x105 Duramax Cutless Bearing Purchase

90 110 360 4.78 12.50

90x110 Duramax Cutless Bearing Purchase

95 115 380 4.51 13.31

95x115 Duramax Cutless Bearing Purchase

100 125 400 3.77 14.25

100x125 Duramax Cutless Bearing Purchase

105 130 420 4.52 17.62

105x130 Duramax Cutless Bearing Purchase

110 135 440 4.51 19.00

110x135 Duramax Cutless Bearing Purchase

115 145 460 4.25 25.31

115x145 Duramax Cutless Bearing Purchase

120 155 480 6.06 31.62

120x155 Duramax Cutless Bearing Purchase

130 170 520 5.63 49.00

130x170 Duramax Cutless Bearing Purchase


Special sizes available upon request.
