Duramax Marine Shaft Seal

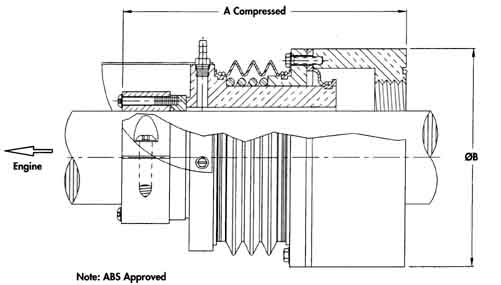

Drawing and Sizes

Duramax Marine Shaft Seal

Duramax Marine Shaft Seal Exploded View



How Does A Marine Propeller Shaft Seal Work?

Shaft Size

Seal Part Number

A

B

3/4"

DXU-0750

7 1/2

3 1/2

7/8"

DXU-0875

7 1/2

3 1/2

1"

DXU-1000

7 5/8

4 1/2

1 1/8"

DXU-1125

7 5/8

4 1/2

1 1/4"

DXU-1250

7 5/8

4 1/2

1 3/8"

DXU-1375

7 5/8

4 1/2

1 1/2"

DXU-1500

7 5/8

4 1/2

1 3/4"

DXU-1750

7 13/16

4 1/2

2"

DXU-2000

7 7/8

5 1/2

2 1/4"

DXU-2250

7 7/8

5 1/2

2 1/2"

DXU-2500

8 3/8

5 1/2

2 3/4"

DXU-2750

8 3/8

5 1/2

3"

DXU-3000A

9 1/4

7

3 1/4"

DXU-3250

9 1/8

7

3 1/2"

DXU-3500

9 1/8

7

3 3/4"

DXU-3750

9 1/8

7

4"

DXU-4000A

9 1/2

8

4 1/4"

DXU-4250A

9 1/2

8

4 1/2"

DXU-4500A

9 1/2

8

4 3/4"

DXU-4750A

10 1/4

8

5"

DXU-5000

10 15/16

10

5 1/4"

DXU-5250

10 15/16

10

5 1/2"

DXU-5500

10 15/16

10

5 3/4"

DXU-5750

10 15/16

10

6"

DXU-6000

10 15/16

11

6 1/4"

DXU-6250

10 15/16

11

6 1/2"

DXU-6500

10 15/16

11

6 3/4"

DXU-6750

10 15/16

11
