Square Flange Split Roller Bearings

Up to 3 Inches (50 mm)

Square Flange Split Roller Bearings


01 Series DF line flange units

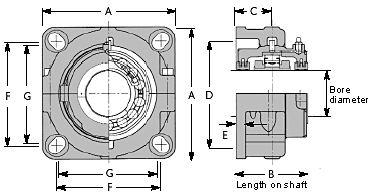

Shaft diameter (d) References Flange only A B C D E Head head bolts 'F' centers (hex head) Metric (S.H.C.S.) 'G' centers (S.H.C.S.)
Flange unit complete
inches mm inches millimeters
1 11/16
1 15/16
2
45
50
01 EBCDF 111
01 EBCDF 112
01 EBCDF 115
01 EBCDF 200
01 EBCDF 45
01 EBCDF 50
DF02 6 1/2
165
4
101
2
52
4 5/8
118
1/2
13
1/2 4 5/8
118
M12 4 7/16
113
2 3/16
2 7/16
2 1/2
60
65
01 EBCDF 203
01 EBCDF 204
01 EBCDF 207
01 EBCDF 208
01 EBCDF 60
01 EBCDF 65
DF03 7 1/4
185
4 1/4
107
2 3/16
55
5 3/4
146
5/8
16
5/8 5 9/16
141
M16 5 3/8
136
2 11/16
2 15/16
3
70
75
01 EBCDF 211
01 EBCDF 212
01 EBCDF 215
01 EBCDF 300
01 EBCDF 45
01 EBCDF 50
DF02 8 5/8
217
4 5/8
117
2 3/8
60
7.0
178.0
5/8
16
3/4 6 3/4
171
M20 6 7/16
164
Add mm for millimeters and EX for expansion type or GR for fixed type to reference. i.e. 01 BCDF 60mm GR.
