Take Up Push Type Split Roller Bearings

Series 02 - Heavy Duty - All Bearing Sizes

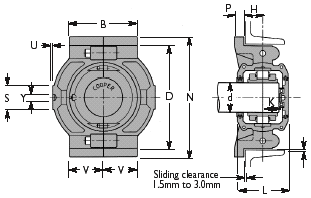

02 Series take-up push type
Shaft diameter (d) Reference Take up
Casting Only
B N D V K P H L S Y U Wt.
(lb.)
(kg)
Take up complete
inches mm inches millimeters
1 11/16
1 3/4
1 15/16
2
50 02 BCTP 111
02 BCTP 112
02 BCTP 115
02 BCTP 200
02 BCTP 50 TP03 5
128
9 1/4
235
8
203
4
102
1 3/16
30
3/4
20
1 1/4
32
4
104
1 1/2
38
5/8
16
1/4
6
26
12
2 3/16
2 1/4
2 7/16
2 1/2
60
65
02 BCTP 203
02 BCTP 204
02 BCTP 207
02 BCTP 208
02 BCTP 60
02 BCTP 65
TP04 6
152
10 1/2
266
9
229
4 1/2
114
1 3/8
35
7/8
22
1 9/16
40
4 1/2
114
1 5/8
41
5/8
16
1/4
6
38
17
2 11/16
2 3/4
2 15/16
3
70
75
02 BCTP 211
02 BCTP 212
02 BCTP 215
02 BCTP 300
02 BCTP 70
02 BCTP 75
TP05 7 1/2
190
12 1/2
318
11
280
5 1/2
140
1 9/16
40
7/8
22
1 9/16
40
5 3/8
136
2
51
5/8
16
1/4
6
60
27
3 3/16
3 1/4
3 7/16
3 1/2
80
85
90
02 BCTP 303
02 BCTP 304
02 BCTP 307
02 BCTP 308
02 BCTP 80
02 BCTP 85
02 BCTP 90
TP06 8
204
13 1/2
342
12
305
6
152
-
-
7/8
22
1 11/16
43
5 1/4
134
2
51
3/4
19
1/4
6
68
31
3 11/16
3 3/4
3 15/16
4
100
105
02 BCTP 311
02 BCTP 312
02 BCTP 315
02 BCTP 400
02 BCTP 100
02 BCTP 105
TP07 8 1/2
216
15
382
13 1/2
343
6 3/8
162
-
-
7/8
22
1 7/8
48
5 3/8
142
2 3/4
70
3/4
19
1/4
6
101
46
4 3/16
4 7/16
4 1/2
110
115
02 BCTP 403
02 BCTP 407
02 BCTP 408
02 BCTP 110
02 BCTP 115
TP08 10
254
16 1/2
420
15
381
7 1/2
190
-
-
1
25
2
51
6 1/8
156
3
76
3/4
19
1/4
6
143
65
4 15/16
5
120
125
130
02 BCTP 415
02 BCTP 500
02 BCTP 120
02 BCTP 125
02 BCTP 130
TP10 10 1/2
266
18 1/4
464
16 3/4
426
8
204
-
-
1
25
2 1/4
57
6 7/8
174
3 3/8
86
15/16
23
5/16
8
201
91
5 3/16
5 7/16
5 1/2
135
140
02 BCTP 503
02 BCTP 507
02 BCTP 508
02 BCTP 135
02 BCTP 140
TP30 11
280
19 3/4
502
18 1/4
464
8 3/4
222
-
-
1
25
2 3/8
60
7 7/16
188
3 5/8
92
15/16
23
5/16
8
241
109
5 15/16
6
150
155
02 BCTP 515
02 BCTP 600
02 BCTP 150
02 BCTP 155
TP31 12
305
20 3/4
528
19 1/4
489
9 1/4
235
-
-
1
25
2 1/2
64
8
204
3 5/8
92
1
26
3/8
10
273
124
The above arrangement is for sizes up to 90mm, for larger sizes use two fixed (GR) bearings Illustrations are typical.
Dimensions should be confirmed before fixing design
Add mm for millimeters and EX for expansion type or GR for fixed type to reference i.e. 02 BCTP 150mm GR.
