How PM&I Can Help Prevent Delays

M Line Split Roller Bearings

01 Series - Medium Duty

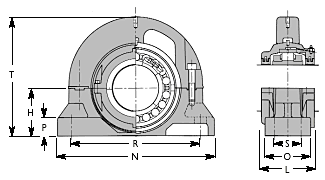

Ductile iron pillow blocks
Bore Pillow block complete Pedestal only H L N O P Bolts R S
inches mm inches millimeters Min Max
3 3/16
3 1/4
3 7/16
3 1/2
-
-
-
-
01 EBCPM 303
01 EBCPM 304
01 EBCPM 307
01 EBCPM 308
-
-
-
-
PM05 3 13/16 5 5/16 13 3 1/2 1 1/8 (4)- 5/8 9 7/8 11 2 1/8
-
-
-
80
85
90
-
-
-
01 EBCPM 80
01 EBCPM 85
01 EBCPM 90
69.8 135 330 89 29 M16 251 279 54
3 11/16
3 3/4
3 15/16
4
-
-
-
-
01 EBCPM 311
01 EBCPM 312
01 EBCPM 315
01 EBCPM 400
-
-
-
-
PM06 4 1/2 5 1/4 15 1/4 4 3/8 1 3/4 (4)- 3/4 11 5/8 13 1/8 2 3/8
-
-
-
95
100
105
-
-
-
01 EBCPM 95
01 EBCPM 100
01 EBCPM 105
114.3 133 387 111 45 M20 295 333 60
4 3/16
4 1/4
4 7/16
4 1/2
-
-
-
-
01 BCPM 403
01 BCPM 404
01 BCPM 407
01 BCPM 408
-
-
-
-
PM07 4 15/16 5 5/8 16 1/2 4 3/4 2 (4)- 3/4 12 5/8 14 1/2 2 3/4
-
-
110
115
-
-
01 BCPM 110
01 BCPM 115
125.4 143 419 121 51 M20 321 368 70
4 11/16
4 3/4
4 15/16
5
-
-
-
-
01 BCPM 411
01 BCPM 412
01 BCPM 415
01 BCPM 500
-
-
-
-
PM08 6 6 1/8 18 3/8 5 1/8 2 3/8 (4)- 7/8 14 5/8 16 3 1/4
-
-
-
120
125
130
-
-
-
01 BCPM 120
01 BCPM 125
01 BCPM 130
152.4 156 467 130 60 M24 372 406 83
5 11/16
5 3/4
5 15/16
5
-
-
-
-
01 BCPM 511
01 BCPM 512
01 BCPM 515
01 BCPM 600
-
-
-
-
PM10 6 1/8 6 7/8 20 1/8 5 7/8 2 3/8 (4)-1 16 17 1/8 3 3/8
-
-
-
145
150
155
-
-
-
01 BCPM 145
01 BCPM 150
01 BCPM 155
155.6 175 511 149 60 M24 406 435 86
Use with standard 01 Series bearings/cartridge (BC) units.
