How PM&I Can Help Prevent Delays

SAF Housing Split Roller Bearings

(Replacement)

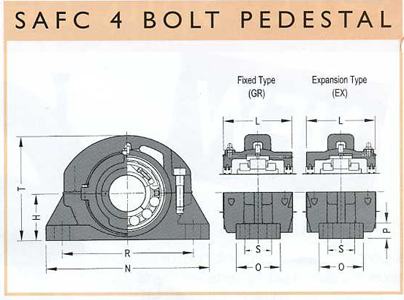

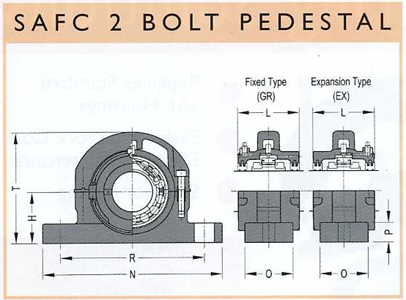

Replacement of SAF Pedestal Bearings:

Shaft Size

Complete Assembly

Additional Bearing Sizes

H

R Min

R Max

S

Bolt Size

L

N

O

P

T

1 15/16

01EBC SAFC511 115 AT

1 11/16, 1 3/4, 2, 45mm, 50mm

2 3/4

7 3/8

7 7/8

-

2 x 5/8

3 13/16

9 5/8

2 3/4

7/8

6 1/8

2 3/16

01EBC SAFC513 203 AT

2 1/4, 2 7/16, 2 1/2, 60mm, 65mm

3

8 1/8

9 1/2

-

2 x 5/8

4 1/16

11

3 1/8

1

7

2 7/16

01EBC SAFC515 207 AT

2 3/16, 2 1/4, 2 1/2, 60mm, 65mm

3 1/4

8 5/8

9 5/8

-

2 x 5/8

4 1/16

11 1/4

3 1/8

1 1/8

7 1/4

2 11/16

01EBC SAFC516 211 AT

2 3/4, 2 15/16, 3, 70mm, 75mm

3 1/2

9 5/8

11

-

2 x 3/4

4 1/2

13

3 1/2

1 1/4

8

2 15/16

01EBC SAFC517 215 AT

2 11/16, 2 3/4, 3, 70mm, 75mm

3 3/4

9 7/8

11

-

2 x 3/4

4 1/2

13

3 1/2

1 1/2

8 1/4

2 15/16

02BC FSAFC517 215 AT

2 11/16, 2 3/4, 3, 70mm, 75mm

3 3/4

9 7/8

11

2 1/8

4 x 5/8

5 1/2

13

3 1/2

1 1/4

8 1/2

3 3/16

01EBC SAFC518 303 AT

3 1/4, 80mm, 3 7/16, 3 1/2, 85mm,90mm

4

10 3/8

11 5/8

-

2 x 3/4

5 5/16

13 5/8

3 7/8

1 1/4

9 1/2

3 7/16

01EBC SAFC520 307 AT

3 3/16, 3 1/4, 3 1/2, 80mm, 85mm,90mm

4 1/2

11 5/8

13 1/8

-

2 x 7/8

5 5/16

15 1/4

4 3/8

1 3/4

10

3 7/16

02BC FSAFC520 307 AT

3 3/16, 3 1/4, 3 1/2, 80mm, 85mm, 90mm

4 1/2

11 5/8

13 1/8

2 3/8

4 x 3/4

6 1/16

15 1/4

4 3/8

1 3/4

10 1/4

3 15/16

02BC SAFC522 315 AT

3 11/16, 3 3/4, 4, 100mm, 105mm

4 15/16

12 5/8

14 1/2

2 3/4

4 x 3/4

5 3/4

16 1/2

4 3/4

2

11 5/8

4 7/16

02BC SAFC526 407 AT

4 3/16, 110mm, 4 1/2, 115mm

6

14 5/8

16

3 1/4

4 x 3/4

6 3/8

18 3/8

5 1/8

2 3/8

14 1/4

4 15/16

02BC SAFC528 415 AT*

120mm,5 125mm,130mm

6

16

17 1/8

3 3/8

4 x 1

7 1/4

20 1/8

5 7/8

1 3/8

15 1/4

5 7/16

02BC SAFC532 507 AT

5 3/16, 140mm, 5 1/2 145mm

6 11/16

17 3/8

19 1/4

3 3/4

4 x 1

7 3/8

22

6 1/4

2 5/8

16  3/4

5 15/16

02BC SAFC534 515 AT

6, 150mm, 155mm

7 1/16

19 3/8

21 5/8

4 1/4

4 x 1

8

24 3/4

6 3/4

2 3/4

17 3/8
