S310 Slim Line

Submersible Hydraulic Powered Pumps

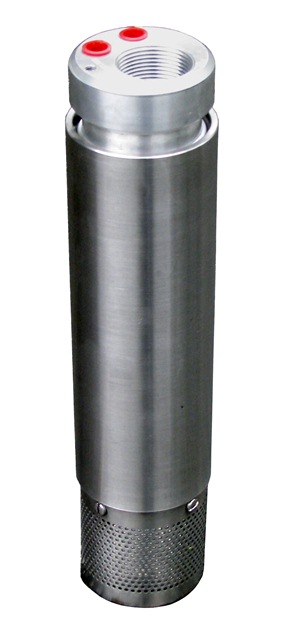

S310 Slim Line Hydraulic Powered Pumps

Submersible Restricted Space



Up to 60 GPM Flow Rate

1 1/4 Inch Discharge

Up to 195 Feet Head Pressure



Information Needed to Quote Hydraulic Powered Submersible Pumps



How to Size and Specify a Pump



Weight 9 lbs. (4 kg)

Height 13 1/2" (343 mm)

Diameter 3 1/8" (79 mm)

Discharge 1 1/4" NPT(F)

Hose Ports 1/4" NPT (F)

Pump Body Stainless Steel

Impeller/Screw Stainless Steel

Suction Case Aluminum

Elastometers Buna N (Std)

Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)

Input Flow Max. 6 GPM (23 LPM)

Operating Pressure Max: 1800 PSI (122 Bar)

Power Source Any Open Center Hydraulic System



Options and Accessories: Submersible Hydraulic Powered Pumps



Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps

Lagoon Raft

Silt Jetting Ring

Hydraulic Controls

Slurry Gate
