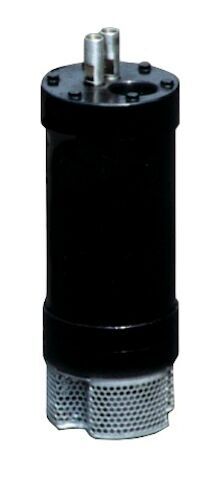

S1.5A Slim Line

Submersible Hydraulic Powered Pumps

S1.5A Slim Line Hydraulic Powered Pumps

Submersible Restricted Space



Up to 135 GPM Flow Rate

1 1/2 Inch Discharge

Up to 125 Feet Head Pressure



Information Needed to Quote Hydraulic Powered Submersible Pumps



How to Size and Specify a Pump



Weight 17 lbs. (8 kg)

Height 15 1/2" (39 cm)

Diameter 5 5/6” (14cm)

Discharge 1 1/2 ", NPT(F)

Solid Handling 1/4" (7 mm)

Hose Ports 3/8" NPT (F)

Pump Body Anodized Aluminum

Impeller/Screw Stainless Steel

Suction Case Rubber Lined

Elastometers Buna N (Std)

Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)

Input Flow Max. 7 GPM (26 LPM)

Operating Pressure Max 2000 PSI (136 Bar)

Power Source Any Open Center Hydraulic System



Options and Accessories: Submersible Hydraulic Powered Pumps



Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps

Lagoon Raft

Silt Jetting Ring

Hydraulic Controls

Slurry Gate
