S3SCR Screw

Submersible Hydraulic Powered Pumps

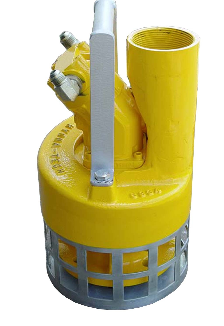

Screw Hydraulic Powered Pump S3SCR

Submersible Higher Viscosity Liquids



Up to 575 GPM Flow Rate

3 Inch Discharge

Up to 150 Feet Head Pressure



How to Size and Specify a Pump



Weight 43 lbs. (20 kg)

Height 16 1/2" (42 cm)

Diameter 9 1/4" (24 cm)

Discharge 3" NPT (F)

Inlet Flange 3" 125# ANSI

Solid Handling 1 1/2" (38 mm)

Hose Ports 1/2" JIC (M)

Pump Body Heat Treated Aluminum

Impeller/Screw CD4MCU Stainless Steel

Suction Case Heat Treated Aluminum

Elastometers Buna N (Std)

Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)

Input Flow Max. 11 GPM (42 LPM)

Operating Pressure Max. 3500 PSI (241 Bar)

Power Source Any Open Center Hydraulic System



Options and Accessories: Submersible Hydraulic Powered Pumps



Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps

Lagoon Raft

Silt Jetting Ring

Hydraulic Controls

Slurry Gate
