S8M Axial Flow Water

Submersible Hydraulic Powered Pumps

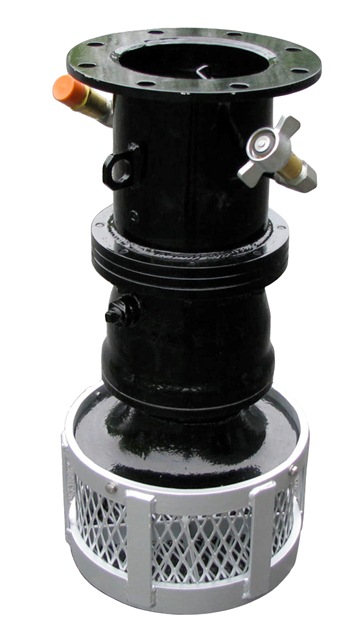

Axial Flow Water Hydraulic Powered Pump S8M

Submersible Efficient High Volume



Up to 2000 GPM Flow Rate

8 Inch Discharge

Up to 59 Feet Head Pressure



Information Needed to Quote Hydraulic Powered Submersible Pumps



How to Size and Specify a Pump



Weight 190 lbs. (86 kg)

Height 31" (79 cm)

Diameter 18 1//2" (47 cm)

Discharge 8-5/8" O.D. Pipe or Flange

Solid Handling 1" (25 mm)

Hose Ports 3/4" NPT

Pump Body Cast Iron

Impeller/Screw Bronze

Elastometers Buna N (Std)

Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)

Input Flow Max 18 GPM (68 LPM)

Operating Pressure Max 2800 PSI (190 Bar)

Power Source Any Open Center Hydraulic System



Options and Accessories: Submersible Hydraulic Powered Pumps



Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps

Lagoon Raft

Silt Jetting Ring

Hydraulic Controls

Slurry Gate
