S6P Axial Flow Water

Submersible Hydraulic Powered Pumps

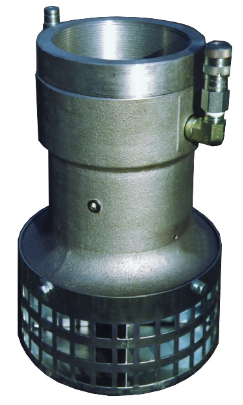

Axial Flow Water Hydraulic Powered Pump S6P

Submersible Efficient High Volume



Up to 1180 GPM Flow Rate

6 Inch Discharge

Up to 25 Feet Head Pressure



Information Needed to Quote Hydraulic Powered Submersible Pumps



How to Size and Specify a Pump



Weight 40 lbs. (18 kg)

Height 16" (41 cm)

Diameter 14" (35 cm)

Discharge 6" NPT(F)

Solid Handling 3/4" (2 cm)

Hose Ports 1/2" NPT (F)

Pump Body Heat Treated Aluminum

Impeller/Screw Ductile Iron

Elastometers Buna N (Std)

Hydraulic Oil 214-320 s.s.u. @ 100°F (64°C)

Input Flow Max. 6.5 GPM (24 LPM)

Operating Pressure Max. 2750 PSI (189 Bar)

Power Source Any Open Center Hydraulic System



Options and Accessories: Submersible Hydraulic Powered Pumps



Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps Submersible Hydraulic Powered Pumps

Lagoon Raft

Silt Jetting Ring

Hydraulic Controls

Slurry Gate
