Fuel Oil Purifier Separator Centrifuge

MAB 104 Oil Purifier

Fuel Oil, Lube Oil and Food Oil

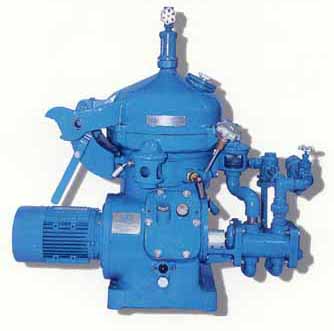

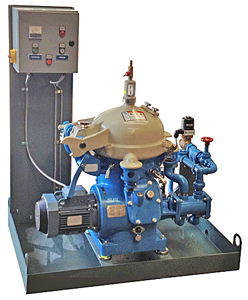

MAB 104 Fuel Oil Purifier Separator Centrifuge  mab-104-skid-mounted-purifier

How High Speed Centrifugal Purifiers Work

Application:
Purification, concentration, clarification of mineral oils (fuel, lubricating, turbine, hydraulic and work shop oils) used in marine installations and industries.

Standard Equipment:
Tools, set of gravity disks, supply device with sight glass for priming and wash water, outlet sight glass, revolution counter, standard set of spares, electric motor.

Technical Data
Pump capacity   1950 l/h or 430 g/h
Suction lift to supply pump   4 m (12 feet) water column
Delivery head of discharge pump   15 m (45 feet) water column



Materials:

Frame   cast iron
Covers   silumin cast-aluminum alloy
Bowl body and hood   stainless steel
Distributor   stainless steel
Disc stack and gravity discs   stainless steel
Top disc   tinned bronze
Lock rings   tinned steel and tinned bronze



Performance
Diesel oil (viscosity 65 sec R.1/100 Degree F)   1950 l/h or 430 g/h

Heavy Fuel Oil
Viscosity 500 sec R.1/100 Degree F   1215 l/h or 270 g/h
Viscosity 1500 sec R.1/100 Degree F   885 l/h or 195 g/h

Lubricating oil, straight
Bypass system, maximum   1550 l/h or 340 g/h
Bypass system, optimum   635 l/h or 140 g/h
Batch system, recommended   1025 l/h or 225 g/h

Lubricating oil, detergent
Bypass system, maximum   940 l/h or 205 g/h
Bypass system, optimum   390 l/h or 85 g/h
Batch system, recommended   610 l/h or 135 g/h

Turbine oil   1350 l/h or 340 g/h



Shipping Data

Net Weight   390 lbs. / 175 kg.
Gross Weight   620 lbs. / 280 kg
Volume   22 cubic feet / 0.63 cubic meter
