Marine Stuffing Box - Packing Gland

For 2 1/2" to 15" Propeller Shaft Sizes and Larger

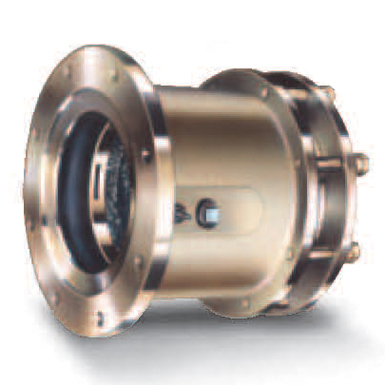

1786 Marine Stuffing Box Propeller Seal 1787 Marine Stuffing Box Propeller Seal 1788 Marine Stuffing Box Propeller Seal
1786 Stuffing Box 1787 Stuffing Box 1788 Stuffing Box
2 1/2 to 15 inches and larger  2 1/2 to 15 inches and larger   2 1/2 to 15 inches and larger
Water Grease Lubrication with Air Seal Grease Lubrication with Air Seal Water Lubrication with Air Seal
Type 1 - Female Recess Type 3 - Female Recess Type 5 - Female Recess
Type 2 - Male Pilot Type 4 - Male Pilot Type 6 - Male Pilot

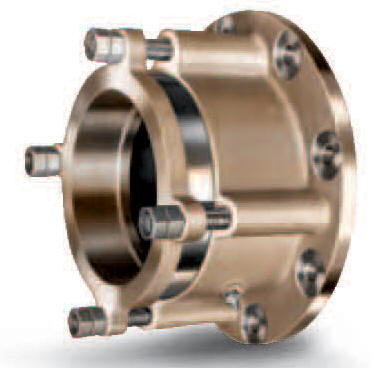

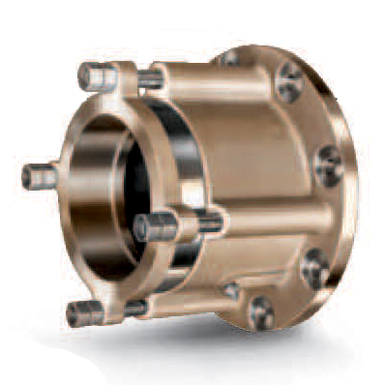

1789 Marine Stuffing Box Propeller Seal 1790 Marine Stuffing Box Propeller Seal 1790M Marine Stuffing Box Propeller Seal
1789 Stuffing Box 1790 Stuffing Box 1790M Stuffing Box
2 1/2 to 15 inches and larger   3 to 7 inch and larger  2 to 6 1/4 inch and larger
Water Lubrication Grease Lubrication Grease Lubrication
Type 7 - Female Recess Type 9 - Female Recess Bulkhead or Rudder Application
Type 8 - Male Pilot Type 10 - Male Pilot Male Pilot

1791 Marine Stuffing Box Propeller Seal PDutchman Air Seal Ring: Marine Stuffing Box Propeller Seal Ultra X Marine Stuffing Box Packing
1791 Stuffing Box Dutchman Air Seal Ring  Stuffing Box Packing
2 to 6 1/4 inch and larger  2 1/2 to 15 inches and larger    Designed Specifically for
Grease Service Emergency - Add On - Air Seal Ring  Marine Propeller Shaft Application
Bulkhead or Rudder Application as Separate Component
  (not built into the Stuffing Box)

How To Install A Stuffing Box

This catalog page contains:
packing gland, boat stuffing box, marine stuffing box, rudder stuffing box, dripless stuffing box, prop shaft stuffing box, marine packing gland,
