NBR - Industrial

General Information:

Industrial NBR is a peroxide cured hydrogenated nitrile rubber specially developed for crude oil PHE applications where the demands for resistance towards the combination of oil, sulphides and amines are the highest.  The industrial NBR also fills the temperature gap in between nitrile rubber and FKM for most oil applications.



Typical Applications:

Off Shore

High temperature oil applications in combination with steam.



Typical Properties:

Hardness 78 Shore A

Tensile Strength 23 MPa

Elongation at break 200 percent

Not food approved

Maximum continuous temperature 155 C

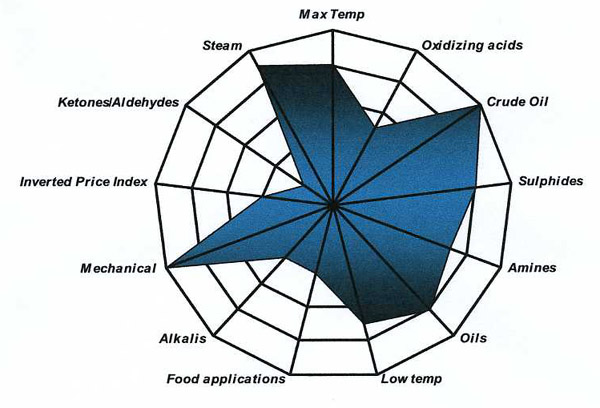

Property Overview:

The greater the distance from the middle the better.

General view in relation to other materials.



Heat Exchanger Gasket Materials NBR Industrial
