How PM&I Can Help Prevent Delays

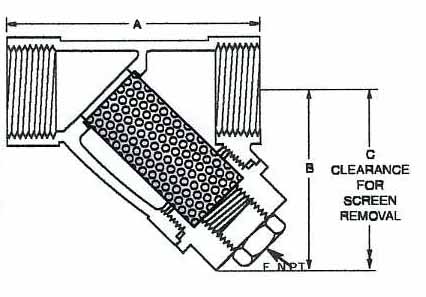

Y Strainer

250 Y1

 1/2 to 3 inch
Bronze
NPT
Standard Screen Sizes: (Other Sizes Available)
1/2" to 1" = 30 mesh
1 1/4" to 3" = 20 mesh
Pressure Drop vs. Flow Rate Open Area Ratios
Replacement Strainer Baskets
