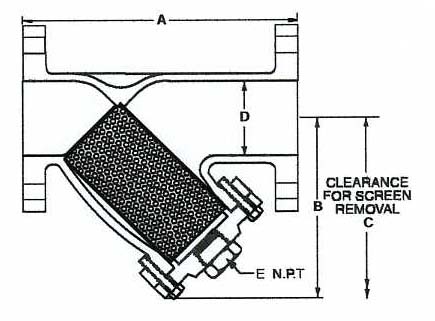

Y Strainer

125 Y2

2 inch to 16 inch
 Cast Iron
Flanged
Standard Screen Sizes: (Other Sizes Available)
2" and 3" is 3/64" and 4" to 16" is 1/8"
Materials of Construction:
Body, Cover and Plug: Cast Iron A126-B
Screen: 304 SS
Gasket: Graphite / Bolt and Stud: A307-B / Nut A563
Pressure Drop vs. Flow Rate Open Area Ratios
Replacement Strainer Baskets
