How PM&I Can Help Prevent Delays

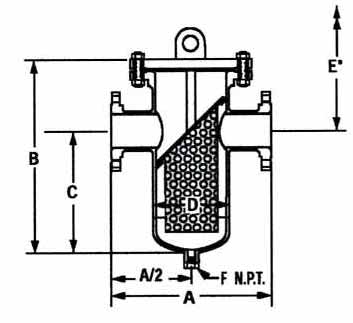

Basket Strainer

Fabricated

FB2 Series

Pressure Drop vs. Flow Rate Open Area Ratios Pressure vs. Temp Chart

Standard cover is bolted
Cover lifting lug standard on 10" sizes and larger.
Class 150# and 300# flanges are standard.
Class 600# and higher available upon request.
Various screen openings available.
