Medium and High Pressure Compressors

Sauer Helium Gas Compressors



Information Required for Quotes: Medium and High Pressure Compressors



Advantages



Gas-tight



Sauer Helium Compressors have a leakage rate of < 0.001 psi



Gas-tight crank case with double lip seal at the crankshaft

Special helium suitable sealings and gaskets

Gas-tight hoses

Intake buffer tank and condensate collecting vessel

Gas-tight oil lock to the crank case

Vacuum flanges acc. to ISO 2861 at gas inlet

Encapsulated safety valves

Gas recirculation back to the suction side by a common piping



Reliability



Sauer Helium Compressors are designed for continuous operation.



Valves with modified stroke and spring suspension

Helium optimized lubrication

Efficient cooling, especially around the highly stressed valves



Test procedure



Sauer Helium Compressors are tested under operation conditions on a special helium test bench.



16 hours running & performance test at final pressure with helium

Tightness check and measurement of the leakage rate with helium

3.1 Inspection Certificate of Performance Data & Leakage Rate

Delivered filled with helium to avoid purge losses



Passat Series Helium Gas Compressor

Tornado Series Helium Gas Compressor

Hurricane Series Helium Gas Compressor

Passat Series Helium Gas Compressor

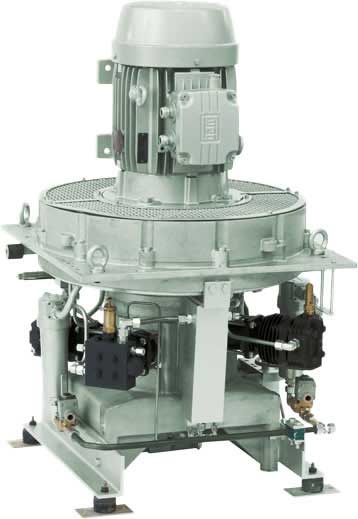

Tornado Series Helium Gas Compressor

Hurricane Series Helium Gas Compressor

3 Models

1 Model

3 Models

Gas Inlet Pressure 1 PSI

Gas Inlet Pressure 1 PSI

Gas Inlet Pressure 1 PSI

Gas Outlet Pressure 580 PSI

Gas Outlet Pressure 3335 PSI

Gas Outlet Pressure 3335 PSI

Flow Rate up to 174 SCFM

Flow Rate up to 12 SCFM

Flow Rate up to 67 SCFM

Rated Power 27-114 HP

Rated Power 10-17 HP

Rated Power 15-70 HP



6000 Series Helium Gas Compressor

6000 Series Helium Gas Compressor

1 Model

Gas Inlet Pressure 1 PSI

Gas Outlet Pressure 5075 PSI

Flow Rate up to 176 SCFM

Rated Power 215 HP
