How PM&I Can Help Prevent Delays

Navigational Aids to IALA Standards

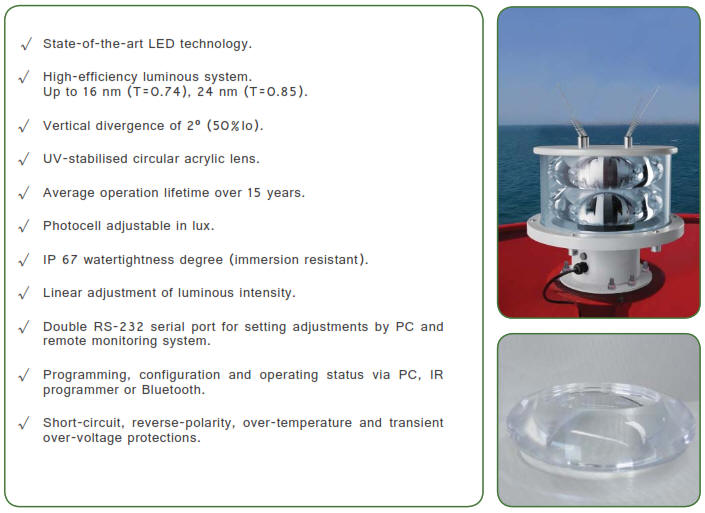

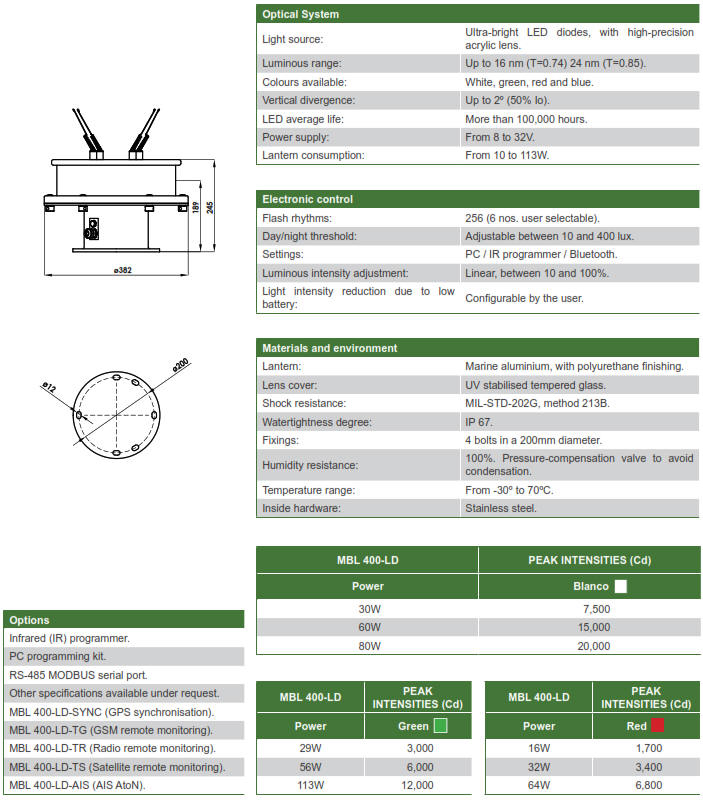

Low Divergence LED Beacon MBL 400LD

Low Divergence LED Beacon


The MBL 400-LD is a LED flashing beacon of medium and long

range, with a great optical output, providing light beams of high precision.


 Its luminous source consists of high-power LED diodes,

obtaining a range of up to 24 nautical miles.


It is intended to be placed in on-shore aids-to-navigation locations, such as poles and towers,

with a minimum maintenance, as well as hard-to-reach sites or under extreme environmental conditions.


Fitted with a high-precision lens made from UV-resistant acrylic and protected with a shock-resistant tempered glass lens cover.


Manufactured with high-quality and resistant materials, the

MBL 400-LD provides a long service life under the harshest marine conditions.


Designed according to IALA Recommendations.


Low Divergence LED Beacon


Low Divergence LED Beacon
