How PM&I Can Help Prevent Delays

Navigational Aids to IALA Standards

Navigational Towers and Day Marks

MTP-S Series GRP Towers

MTP-S GRP Navigational Aid Towers

MTP-S GRP Navigational Aid Towers

3.5 to 10  Meters Tall

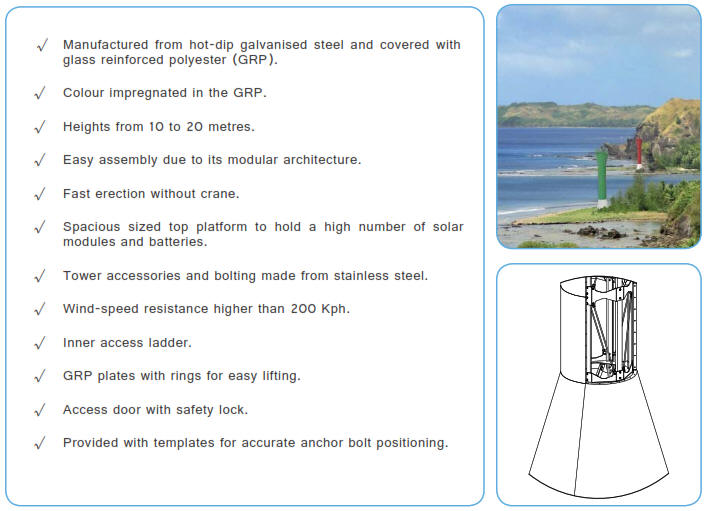

MTP-S towers are especially engineered to incorporate long-range rotating beacons c/w their solar power

supply system, in order to operate as medium- and long-range Lighthouses.



They are manufactured from hot-dip galvanised steel and covered with GRP (Glass Reinforced Polyester) plates.



Colour is impregnated in the raw material.



Thanks to its watertightness, batteries, control units and other items can be housed inside the

tower, in order to be protected from the weather.



Modular construction for easier transport and assembly.



Their large surface allows to obtain a day mark according to IALA Recommendations.



MTP-S GRP Navigational Aid Towers



MTP-S GRP Navigational Aid Towers
