How PM&I Can Help Prevent Delays

Navigational Aids to IALA Standards

Navigational Poles and Day Marks

TPG Small GRP Towers

Navigational Aid Towers - Small GRP

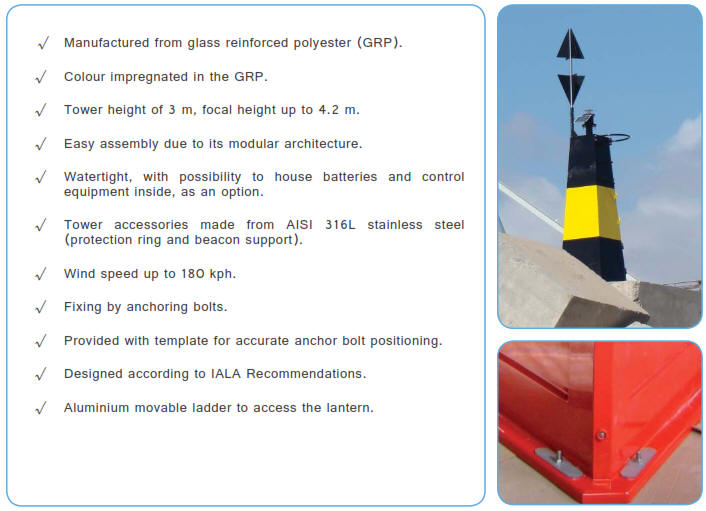

TPG pyramidal-shape towers are small towers especially engineered to incorporate compact self-contained

lanterns and marine flashing beacons fitted with solar power system for short and medium range beaconing applications.



They are manufactured from GRP (Glass Reinforced Polyester).



Color is impregnated in the raw material, this way the tower color remains unaltered, not needing to be repainted eventually.



They can be painted to serve as a good day mark, according to IALA Recommendations.



They incorporate protection ring and beacon support. These accessories are made from AISI 316L stainless steel.



These small towers can be supplied dismounted or fully assembled, ready for their installation in site with anchoring bolts.

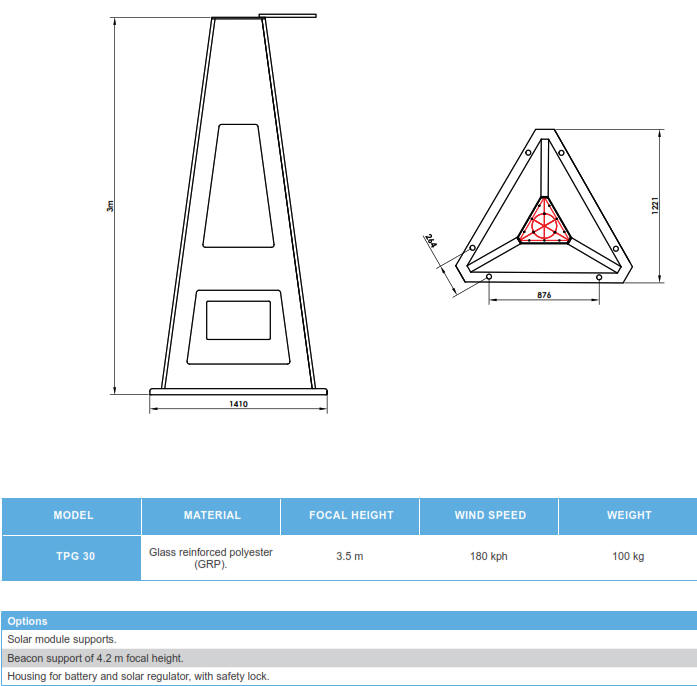

Navigational Aid Towers - Small GRP



Navigational Aid Towers - Small GRP
