How PM&I Can Help Prevent Delays

Navigational Aids to IALA Standards

MCL200-EX ATEX Explosion Proof Lights and Lanterns

Remote Control, Monitoring and Synchronization Available

ATEX Explosion Proof Lights and Lanterns

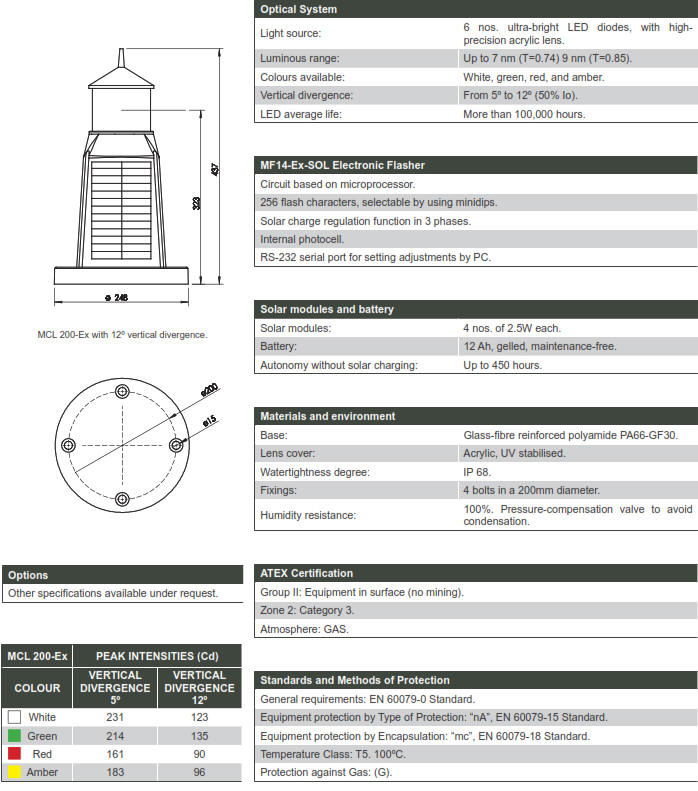

The MCL 200-Explosion Proof lantern is a compact LED marine lantern, solar self-contained, with great optical efficiency and low

consumption, fitted with LED diodes of high intensity, reaching a maximum range of 9 nautical miles and offering a big autonomy.



Its luminous source consists of an innovating lens system especially designed to take the maximum profit of

LED diodes, thus obtaining an output of up to 180 Cd/W.

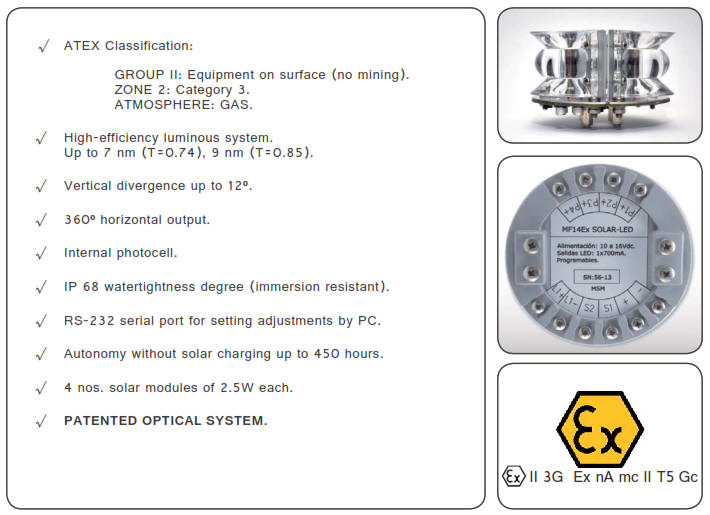

This lantern belongs to the ATEX Classification Group II, Category 3 assuring a high protection level.



This allows the use of this lantern in potentially explosive atmospheres, classified for Zone 2.



Designed according to IALA Recommendations.


MCL200-EX ATEX Explosion Proof Lights and Lanterns

MCL200-EX ATEX Explosion Proof Lights and Lanterns
