MTF 3000 Lighthouse Control

MTF 3000 Lighthouse Control

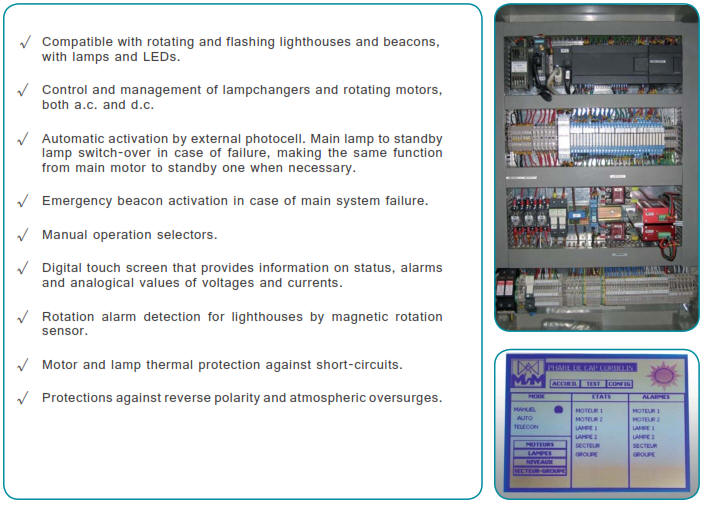

The MTF 3000 control unit has been especially designed to manage lighting and rotating lighthouse systems.



Based on a programmable logic controller, fitted with all necessary elements for a complete

operation. Its universal construction provides an easy adaptation to any type of existing lighthouse system.



Its digital screen informs about the operation status and possible alarms, with manual operation selectors.



Inputs and outputs allow their connexion to a Remote Monitoring System.

Optionally, a modem can be incorporated to transmit data to a Control Centre.



MTF 3000 Lighthouse Control



MTF 3000 Lighthouse Control
